| PNC | Rész kódja | GM rész száma | Cím | Mennyiség | Információ |
i |
|---|

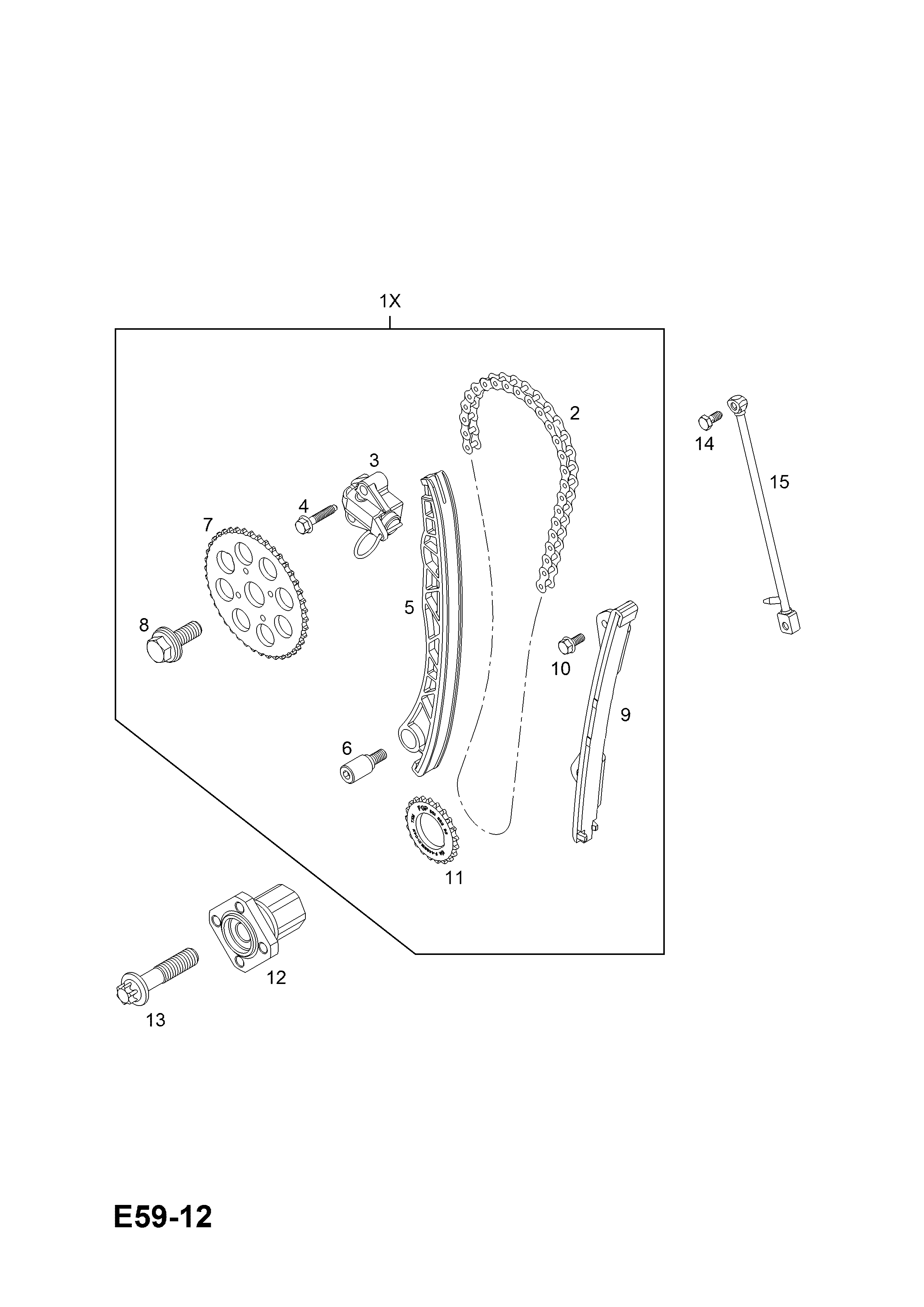

| 1X | 66 06 024 | 93191273 | SET,ENGINE TIMING PARTS (NLS.- USE 95518770 AND SUPPLY 12855467 IF REQUIRED) | 1 |
|
| 2 | 56 36 444 | 93177407 | -CHAIN,TIMING (NLS.- USE 93196893) (PRODUCTION NO. 12855466) | 1 |
|
| ⤷ | 6 37 248 | 93196893 | -CHAIN,TIMING (NLS.- USE 55221385) | 1 |
|
| 3 | 56 36 443 | 93177405 | -TENSIONER,ASSY.,TIMING CHAIN (NLS.- USE 93190427) | 1 |
|
| ⤷ | 56 36 089 | 93190427 | -TENSIONER,ASSY.,TIMING CHAIN (NLS.- USE 55197785) (PRODUCTION NO. 55197785) | 1 |
|
| 4 | 20 05 161 | 93177406 | -SCREW,HEX.HD.,M6 X 32,TENSIONER TO CYLINDER BLOCK (NLS.- USE 55192177) (PRODUCTION NO. 55192177) | 2 |
|
| 5 | 6 42 064 | 93177296 | -RAIL,TENSION,TIMING CHAIN (NLS.- USE 93189410) | 1 |
|
| ⤷ | 6 42 692 | 93189410 | -RAIL,TENSION,TIMING CHAIN (NLS.- USE 55205448) | 1 |
|
| 6 | 6 36 445 | 12855443 | -BOLT,TIMING CHAIN TENSIONER TO CYLINDER BLOCK | 1 |
|
| 7 | 56 36 438 | 93177299 | -SPROCKET,CAMSHAFT,42 TEETH (NLS.- USE 93184547) | 1 |
|
| ⤷ | 56 36 459 | 93184547 | -SPROCKET,CAMSHAFT,42 TEETH (NLS.- USE 55195294) (PRODUCTION NO. 55195294) | 1 |
|
| 8 | 56 36 959 | 93180516 | -SCREW,M12 X 33,SPROCKET TO CAMSHAFT (NLS.- USE 55192211) (PRODUCTION NO. 55192211) | 1 |
|
| 9 | 56 36 442 | 93177300 | -RAIL,GUIDE,TIMING CHAIN (NLS.- USE 93193053) | 1 |
|
| ⤷ | 6 42 717 | 93193053 | -RAIL,GUIDE,TIMING CHAIN (NLS.- USE 55205447) (PRODUCTION NO. 55205447) | 1 |
|
| 10 | 13 37 999 | 93179333 | -SCREW,M6 X 14,TIMING CHAIN GUIDE RAIL TO CYLINDER BLOCK | 2 |
|
| 11 | 56 36 439 | 93177301 | -SPROCKET,CRANKSHAFT,21 TEETH (NLS.- USE 93184548) | 1 |
|
| ⤷ | 56 36 460 | 93184548 | -SPROCKET,CRANKSHAFT,21 TEETH (NLS.- USE 55195293) (PRODUCTION NO. 55195293) | 1 |
|
| 12 | 56 36 935 | 93177468 | FLANGE,OIL PUMP DRIVE (NLS.- USE 12855467) | 1 |
|
| 13 | 56 36 934 | 93177467 | SCREW,HEX.HD.,FLANGE (NLS.- USE 93177467) (PRODUCTION NO. 55187537) | 1 |
|
| 14 | 6 36 852 | 93177817 | SCREW,NOZZLE,TIMING CHAIN (NLS.- USE 55189462) (PRODUCTION NO. 55189462) | 2 |
|
| 15 | 6 36 851 | 93177816 | JET,OIL,TIMING CHAIN (NLS.- USE 12855439) (PRODUCTION NO. 12855439) | 1 |
|
