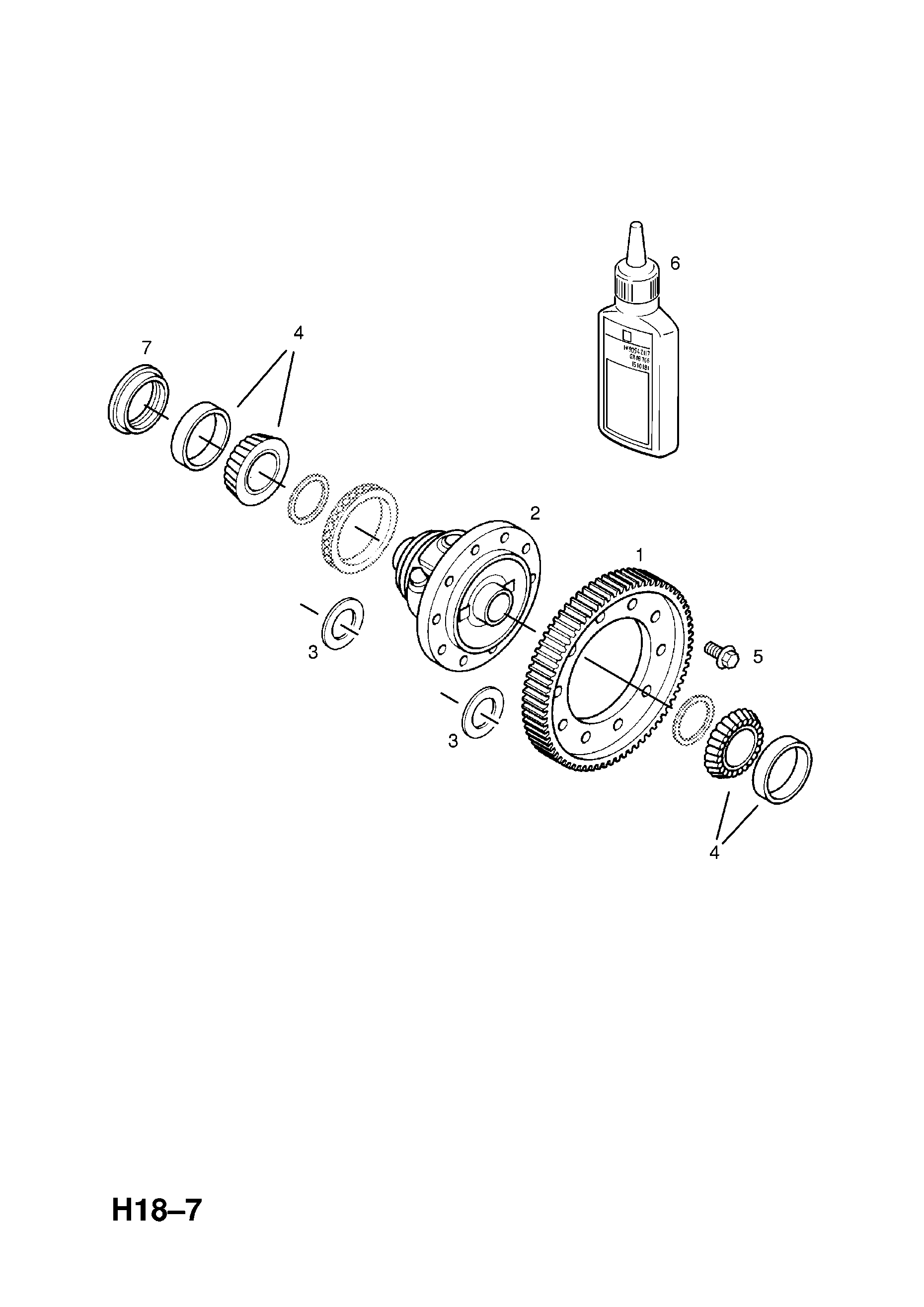

| PNC | Rész kódja | GM rész száma | Cím | Mennyiség | Információ |
i |
|---|
| 1 | 3 71 256 | 9193472 | RING GEAR,DIFFERENTIAL,75 TEETH,3.95 RATIO (NLS.- USE 93189954) | 1 |
|
| 1 | 3 71 253 | 93334167 | RING GEAR,DIFFERENTIAL,73 TEETH,3.84 RATIO | 1 |
|
| 1 | 3 71 255 | 9193471 | RING GEAR,DIFFERENTIAL,71 TEETH,3.74 RATIO | 1 |
|
| 1 | 3 71 254 | 93368556 | RING GEAR,DIFFERENTIAL,75 TEETH,4.17 RATIO | 1 |
|
| 2 | 3 70 118 | 93368551 | DIFFERENTIAL,ASSY.,TRANSMISSION | 1 |
|
| 3 | 16 03 002 | 9193496 | SET,SHIM,DIFFERENTIAL | 2 |
|
| 3 | 3 71 258 | 93368578 | -SHIM,0.50 MM THICK,DIFFERENTIAL SIDE PINION | AR |
|
| 3 | 3 71 259 | 93368579 | -SHIM,0.55 MM THICK,DIFFERENTIAL SIDE PINION | AR |
|
| 3 | 3 71 260 | 93368580 | -SHIM,0.60 MM THICK,DIFFERENTIAL SIDE PINION | AR |
|
| 3 | 3 71 261 | 93368581 | -SHIM,0.65 MM THICK,DIFFERENTIAL SIDE PINION | AR |
|
| 3 | 3 71 262 | 93368582 | -SHIM,0.70 MM THICK,DIFFERENTIAL SIDE PINION | AR |
|
| 3 | 3 71 263 | 93368583 | -SHIM,0.75 MM THICK,DIFFERENTIAL SIDE PINION | AR |
|
| 3 | 3 71 264 | 93368584 | -SHIM,0.80 MM THICK,DIFFERENTIAL SIDE PINION | AR |
|
| 3 | 3 71 265 | 93368585 | -SHIM,0.85 MM THICK,DIFFERENTIAL SIDE PINION | AR |
|
| 3 | 3 71 266 | 93368586 | -SHIM,0.90 MM THICK,DIFFERENTIAL SIDE PINION | AR |
|
| 3 | 3 71 267 | 93368587 | -SHIM,0.95 MM THICK,DIFFERENTIAL SIDE PINION | AR |
|
| 3 | 3 71 268 | 93368588 | -SHIM,1.00 MM THICK,DIFFERENTIAL SIDE PINION | AR |
|
| 3 | 3 71 269 | 93368589 | -SHIM,1.05 MM THICK,DIFFERENTIAL SIDE PINION | AR |
|
| 3 | 3 71 270 | 93368590 | -SHIM,1.10 MM THICK,DIFFERENTIAL SIDE PINION | AR |
|
| 3 | 3 71 271 | 93368591 | -SHIM,1.15 MM THICK,DIFFERENTIAL SIDE PINION | AR |
|
| 3 | 3 71 272 | 93368592 | -SHIM,1.20 MM THICK,DIFFERENTIAL SIDE PINION | AR |
|
| 3 | 3 71 273 | 93368593 | -SHIM,1.25 MM THICK,DIFFERENTIAL SIDE PINION | AR |
|
| 3 | 3 71 274 | 93368594 | -SHIM,1.30 MM THICK,DIFFERENTIAL SIDE PINION | AR |
|
| 3 | 3 71 275 | 93368595 | -SHIM,1.35 MM THICK,DIFFERENTIAL SIDE PINION | AR |
|
| 4 | 3 71 257 | 9193478 | BEARING,TAPER ROLLER,DIFFERENTIAL SIDE GEAR (NLS.- USE 93334162) | 2 |
|
| ⤷ | 3 71 276 | 93334162 | BEARING,TAPER ROLLER,DIFFERENTIAL SIDE GEAR | 2 |
|
| 5 | 20 14 001 | 93368577 | SCREW,HEX.HD.,M10 X 25,RING GEAR TO DIFFERENTIAL CASE | 10 |
|
| 6 | 15 10 181 | 90542117 | COMPOUND,LOCKING,50 ML,RING GEAR TO DIFFERENTIAL CASE | AR |
|
| 7 | 3 74 151 | 90342143 | SEAL,35 X 55 X 9 MM,DRIVE SHAFT,FRONT AXLE | 2 |
|
