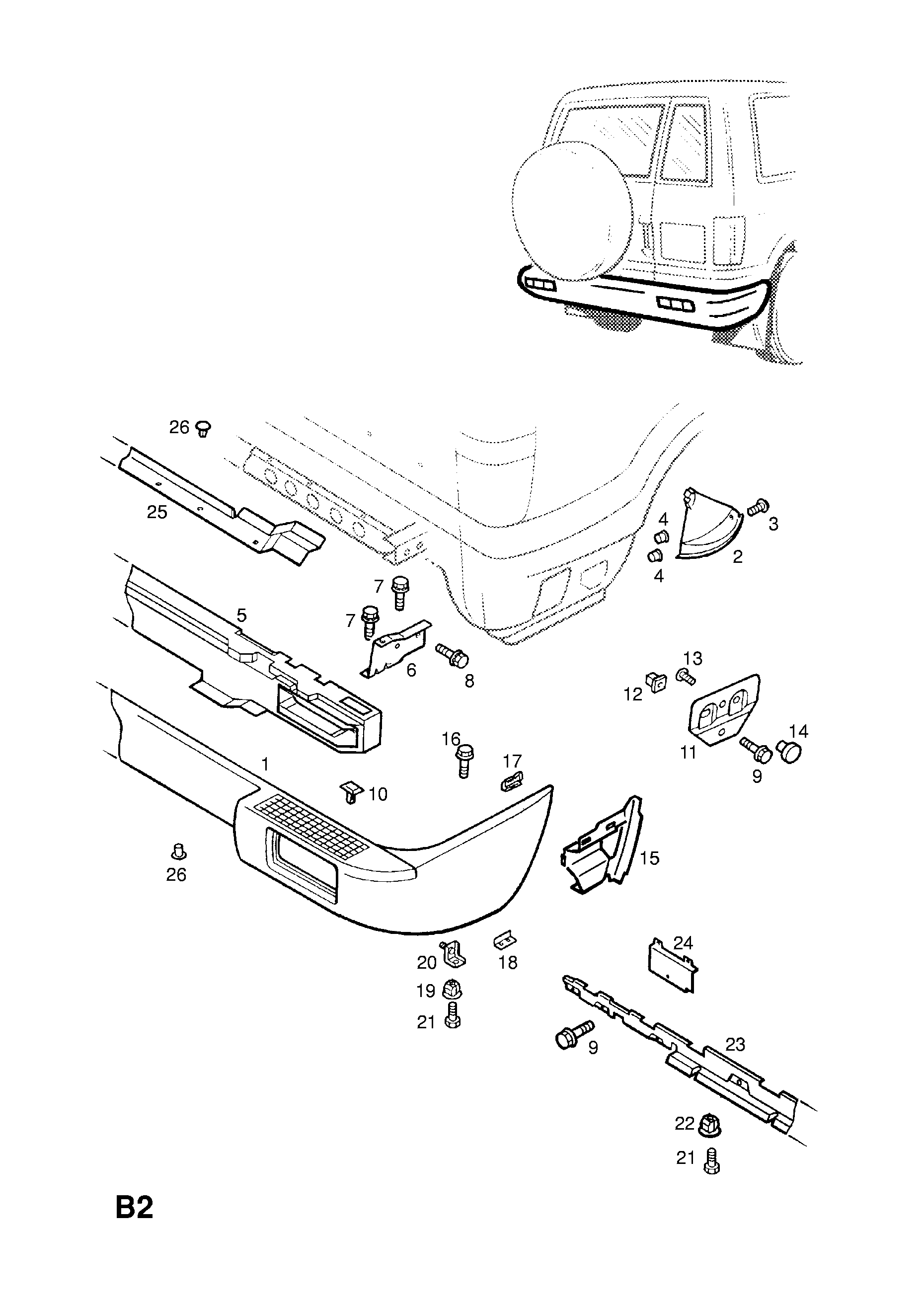

| PNC | Rész kódja | GM rész száma | Cím | Mennyiség | Információ |
i |
|---|
| 5 | 140****93 | 971****17 | REINFORCEMENT,ASSY.,REAR BUMPER | 1 |
|
| 6 | 140****56 | 978****31 | BRACKET,ASSY.,REAR BUMPER MOUNTING,RH | 1 |
|
| 6 | 140****55 | 978****32 | BRACKET,ASSY.,REAR BUMPER MOUNTING,LH (NLS.- NO REPLACEMENT PART) | 1 |
|
| 7 | 834****91 | 940****80 | BOLT,M8 X 20,REAR BUMPER REINFORCEMENT (NLS.- USE 94012125) | 6 |
|
| 8 | 302****27 | 940****75 | BOLT,M12 X 30,REAR BUMPER REINFORCEMENT (NLS.- NO REPLACEMENT PART) | 4 |
|
| 9 | 140****53 | 978****17 | BOLT,M6 X 12,REAR BUMPER REINFORCEMENT (NLS.- USE 97351109) | AR |
|
| ⤷ | 140****23 | 973****09 | BOLT,M6 X 12,REAR BUMPER REINFORCEMENT (NLS.- USE 98016982) | AR |
|
| 10 | 140****98 | 971****38 | CLIP,BUMPER REAR | AR |
|
| 11 | 140****56 | 978****56 | BRACKET,REAR MOUNTING BODY SIDE,RH | 1 |
|
| 11 | 140****57 | 978****57 | BRACKET,REAR MOUNTING BODY SIDE,LH | 1 |
|
| 12 | 140****70 | 942****14 | INSERT,THREADED,REAR BUMPER BRACKET (NLS.- NO REPLACEMENT PART) | 6 |
|
| 13 | 140****54 | 978****35 | SCREW,REAR BUMPER BRACKET | 2 |
|
| 14 | 140****09 | 978****52 | SLIDER,PANEL TO BUMPER (NLS.- NO REPLACEMENT PART) | 2 |
|
| 15 | 140****58 | 978****71 | BRACKET,ASSY.,REAR BUMPER MOUNTING,RH | 1 |
|
| 15 | 140****59 | 978****72 | BRACKET,ASSY.,REAR BUMPER MOUNTING,LH (NLS.- NO REPLACEMENT PART) | 1 |
|
| 16 | 140****55 | 944****05 | BOLT,BUMPER TO BODY (PRODUCTION NO. 91157663) | 18 |
|
| 17 | 140****06 | 971****17 | NUT,SPIRE,REAR BUMPER | 4 |
|
| 18 | 140****69 | 978****85 | NUT,REAR BUMPER (NLS.- NO REPLACEMENT PART) | 2 |
|
| 22 | 140****23 | 978****50 | INSERT,THREADED,REAR BUMPER (NLS.- NO REPLACEMENT PART) | 7 |
|
| 20 | 140****12 | 978****67 | BRACKET,BUMPER,REAR,RH (NLS.- NO REPLACEMENT PART) | 1 |
|
| 20 | 140****11 | 978****68 | BRACKET,BUMPER,REAR,LH | 1 |
|
| 21 | 140****05 | 943****67 | SCREW,M6 X 20,REAR BUMPER LAMP PLATE (NLS.- NO REPLACEMENT PART) | 7 |
|
| 23 | 140****79 | 970****83 | RETAINER,REAR BUMPER,RH (NLS.- NO REPLACEMENT PART) | 1 |
|
| 24 | 122****88 | 978****85 | COVER,REAR LAMP APERTURE,RH (NLS.- NO REPLACEMENT PART) | 1 |
|
| 24 | 122****89 | 978****86 | COVER,REAR LAMP APERTURE,LH (NLS.- NO REPLACEMENT PART) | 1 |
|
| 25 | 140****02 | 943****01 | COVER,REAR CROSSMEMBER,BUMPER (NLS.- NO REPLACEMENT PART) | 1 |
|
| 26 | 140****81 | 942****20 | CLIP,REAR CROSSMEMBER COVER (NLS.- NO REPLACEMENT PART) | AR |
|
