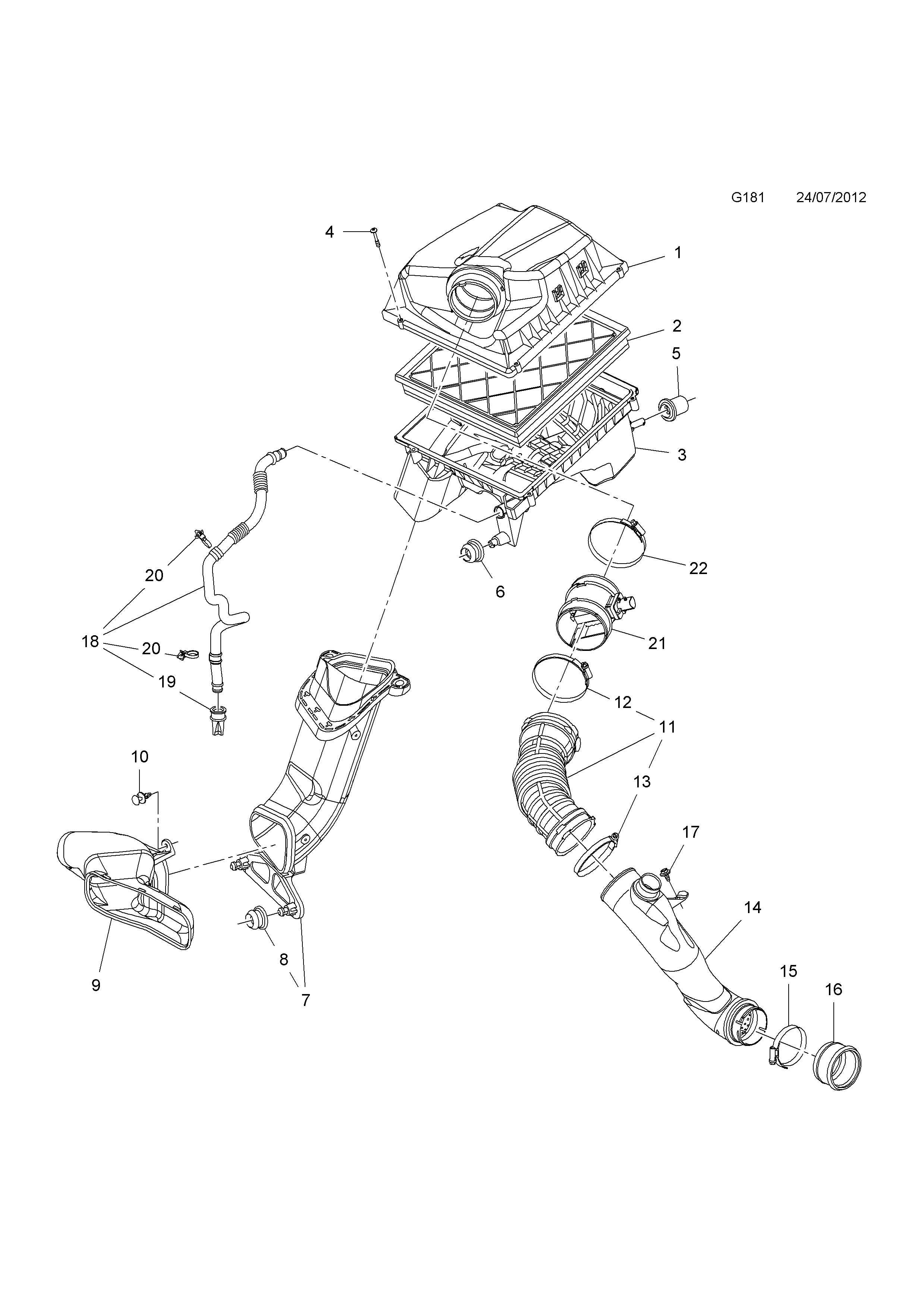

| PNC | Rész kódja | GM rész száma | Cím | Mennyiség | Információ |
i |
|---|
| 1 | 834****87 | 133****01 | COVER,ASSY.,AIR CLEANER,UPPER | 1 |
|
| 2 | 834****26 | 132****19 | ELEMENT,AIR CLEANER | 1 |
|
| 3 | 834****39 | 133****69 | HOUSING,AIR CLEANER,LOWER | 1 |
|
| 4 | 834****29 | 133****34 | SCREW,COVER | 6 |
|
| 5 | 835****51 | 920****41 | BUMPER,AIR CLEANER | 1 |
|
| 8 | 835****50 | 912****05 | -BUMPER,AIR CLEANER | 1 |
|
| 7 | 834****46 | 133****67 | ADAPTOR,AIR CLEANER | 1 |
|
| 9 | 834****45 | 133****66 | DUCT,AIR INTAKE | 1 |
|
| 10 | 480****00 | 115****90 | RIVET,EXPANDING | 1 |
|
| 11 | 835****53 | 134****04 | DUCT,OUTLET,FRONT | 1 |
|
| 12 | 834****94 | 133****36 | -CLAMP,82-92MM | 1 |
|
| 13 | 834****83 | 133****34 | -CLAMP,72-80 MM | 1 |
|
| 14 | 835****86 | 228****49 | DUCT,OUTLET,REAR | 1 |
|
| 15 | 834****38 | 133****32 | CLAMP,59-70MM (OPTIONAL WITH 24415469) (NLS.- USE 24415469) | 1 |
|
| ⤷ | 836****54 | 244****69 | CLAMP,59-70MM (OPTIONAL WITH 13315932) | 1 |
|
| 16 | 835****59 | 555****69 | GASKET,TURBOCHARGER INLET PIPE | 1 |
|
| 17 | 110****43 | 115****82 | SCREW,HEX.HD.,M6 X 16 | 1 |
|
| 18 | 835****62 | 132****21 | HOSE,DRAIN | 1 |
|
| 19 | 860****91 | 553****95 | -VALVE,DRAIN | 1 |
|
| 20 | 628****82 | 131****56 | -STRAP,205MM,HOSE,DRAIN (PRODUCTION NO. 11900515) | 2 |
|
