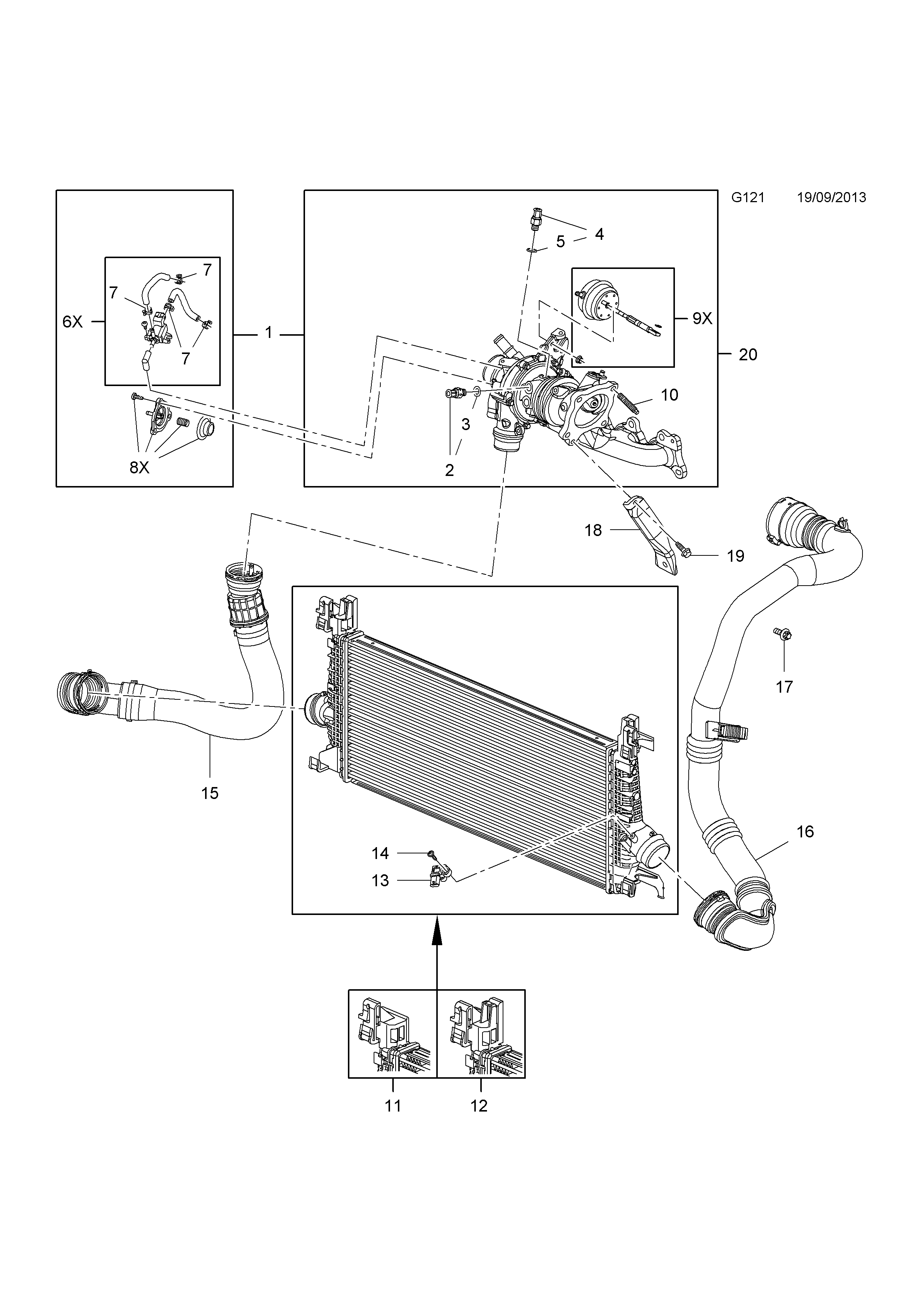

| PNC | Rész kódja | GM rész száma | Cím | Mennyiség | Információ |
i |
|---|
| 1 | 860****67 | 555****00 | TURBOCHARGER,ASSY. | 1 |
|
| 20 | 860****97 | 555****98 | TURBOCHARGER,ASSY. | 1 |
|
| 2 | 860****01 | 555****24 | -FITTING,PIPE,COOLANT,FEED,TURBOCHARGER | 1 |
|
| 3 | 860****62 | 555****00 | --SEAL,PIPE,COOLANT,FEED,TURBOCHARGER | 1 |
|
| 4 | 650****57 | 555****75 | -CONNECTOR,PIPE,COOLANT,FEED,TURBOCHARGER | 1 |
|
| 5 | 209****80 | 555****27 | --SEAL,RING,OIL FEED PIPE TO TURBOCHARGER | 1 |
|
| 6X | 860****02 | 555****92 | -KIT,REPAIR,TURBOCHARGER,WITH HOSES AND CLAMPS | 1 |
|
| 7 | 860****04 | 555****74 | --CLAMP,HOSE FIXING,10.5MM ID. | 4 |
|
| 8X | 860****03 | 555****93 | -KIT,REPAIR,BYPASS VALVE,TURBOCHARGER | 1 |
|
| 9X | 860****04 | 555****94 | -KIT,REPAIR,ACTUATOR,TURBOCHARGER,WASTEGATE | 1 |
|
| 10 | 206****45 | 555****04 | -STUD,M10,TURBOCHARGER (NLS.- USE 55490969) | 4 |
|
| 11 | 130****67 | 133****86 | INTERCOOLER,TURBOCHARGER (USED WITH MANUAL TRANSMISSION) | 1 |
|
| 12 | 130****59 | 133****88 | INTERCOOLER,TURBOCHARGER (USED WITH AUTOMATIC TRANSMISSION) | 1 |
|
| 13 | 124****72 | 555****49 | -SENSOR,BOOST PRESSURE | 1 |
|
| 14 | 200****09 | 134****85 | -SCREW,AIR TEMPERATURE AND CHARGE AIR PRESSURE SENSOR | 1 |
|
| 15 | 860****56 | 133****59 | HOSE,INTERCOOLER,INLET | 1 |
|
| 15 | 861****27 | 134****07 | HOSE,INTERCOOLER,INLET (IDENT LE6) | 1 |
|
| 16 | 130****47 | 133****61 | HOSE,INTERCOOLER,OUTLET | 1 |
|
| 17 | 200****04 | 110****61 | SCREW,TORX,M6 X 16,HOSE,INTERCOOLER | 1 |
|
| 18 | 850****06 | 555****94 | BRACE | 1 |
|
| 19 | 200****93 | 555****85 | SCREW,HEX.HD.,M8 X 25,BRACE,TURBOCHARGER | 2 |
|
