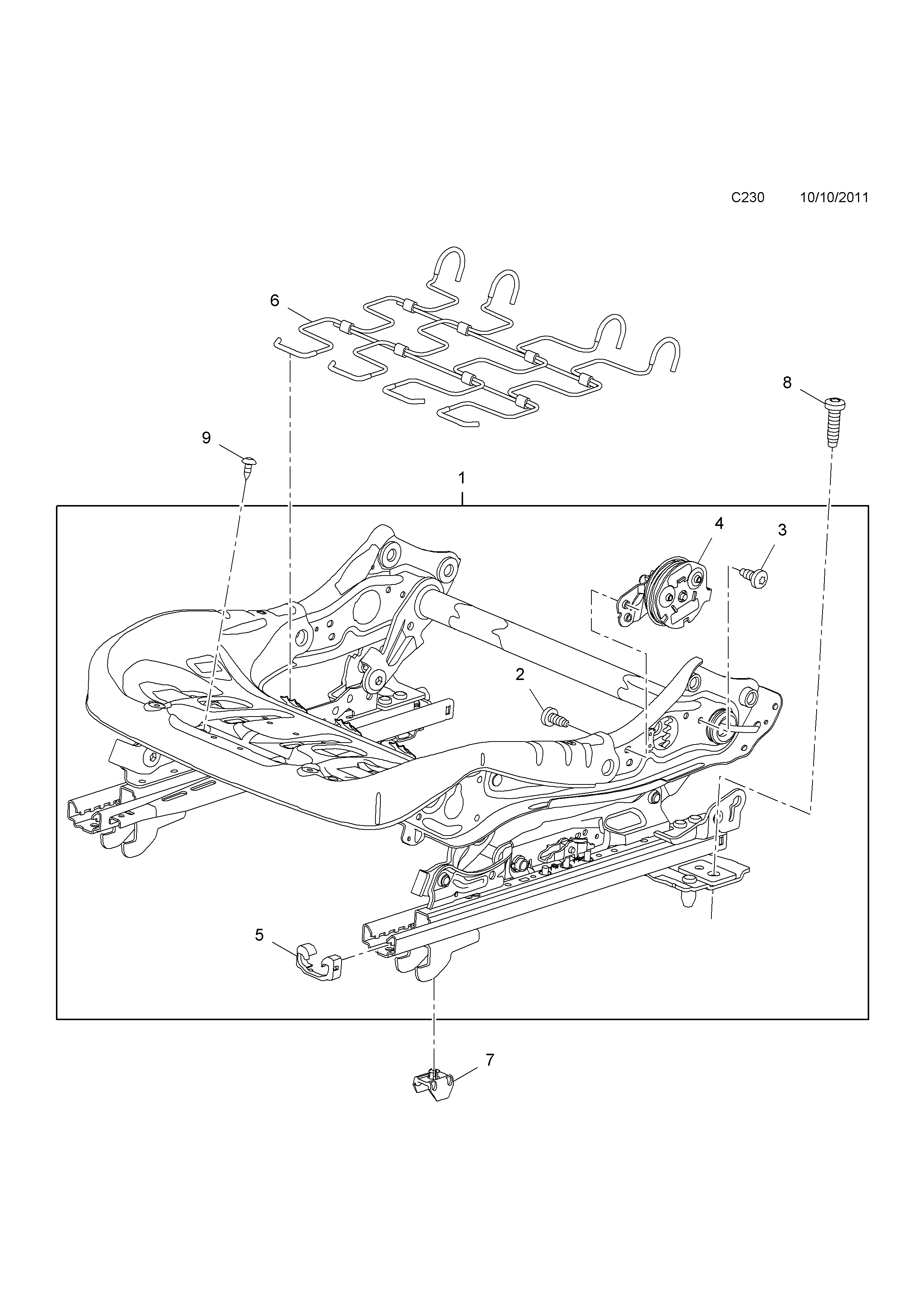

| PNC | Rész kódja | GM rész száma | Cím | Mennyiség | Információ |
i |
|---|
| 1 | 165****01 | 135****56 | FRAME,ASSY.,FRONT SEAT CUSHION,RH SEAT (NLS.- USE 13582680) | 1 |
|
| 1 | 165****00 | 135****55 | FRAME,ASSY.,FRONT SEAT CUSHION,LH SEAT (NLS.- USE 13582679) | 1 |
|
| 2 | 200****59 | 115****19 | -SCREW,TORX,M6 X 15 | 4 |
|
| 3 | 200****93 | 135****81 | -SCREW,TORX,M8 X 23 (NLS.- USE 11570193) | 2 |
|
| 4 | 166****22 | 135****99 | -ADJUSTER,HEIGHT,RH SEAT | 1 |
|
| 4 | 166****21 | 135****98 | -ADJUSTER,HEIGHT,LH SEAT | 1 |
|
| 5 | 726****14 | 131****09 | -CAP,GUIDE RAIL COVER | 4 |
|
| 6 | 165****95 | 208****36 | MAT,WIRE,CUSHION PAD | 2 |
|
| 7 | 166****36 | 132****46 | SPACER,GUIDE RAILS | 2 |
|
| 8 | 200****76 | 115****60 | SCREW,TORX,M10 X 38 | 4 |
|
| 9 | 200****43 | 208****15 | SCREW | 4 |
|
