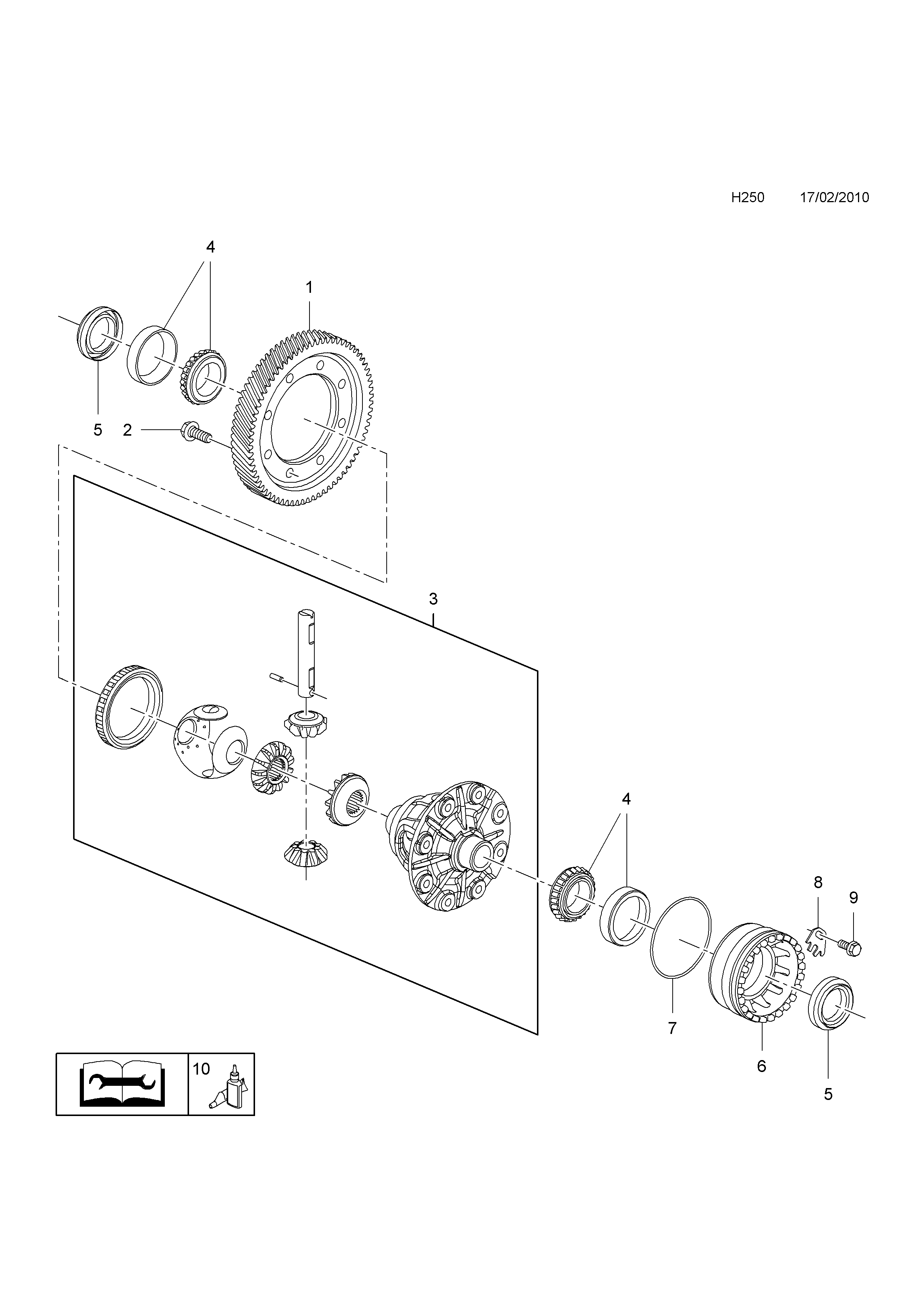

| PNC | Rész kódja | GM rész száma | Cím | Mennyiség | Információ |
i |
|---|
| 1 | 371****91 | 553****64 | SPUR,DRIVING GEAR,DIFFERENTIAL,71 TEETH,3.55 RATIO (IDENT. 4 GROOVES) | 1 |
|
| 1 | 371****53 | 555****83 | SPUR,DRIVING GEAR,DIFFERENTIAL,71 TEETH,3.94 RATIO (IDENT. 1 GROOVE) | 1 |
|
| 1 | 371****92 | 553****65 | SPUR,DRIVING GEAR,DIFFERENTIAL,71 TEETH,3.74 RATIO,IDENT. 2 GROOVES | 1 |
|
| 2 | 371****59 | 245****51 | SCREW,HEX.HD.,M10 X 26,RING GEAR TO DIFFERENTIAL CASE | 8 |
|
| 3 | 370****24 | 555****05 | DIFFERENTIAL,ASSY.,TRANSMISSION,WITH IMPULSE SENDER (FOR BEVEL GEAR BALL DIAMETER 78MM) | 1 |
|
| 3 | 371****97 | 985****30 | DIFFERENTIAL,ASSY.,TRANSMISSION,LESS IMPULSE SENDER (FOR BEVEL GEAR BALL DIAMETER 78MM) | 1 |
|
| 4 | 410****66 | 901****08 | SET,TAPERED ROLLER BEARING,DIFFERENTIAL GEAR | 1 |
|
| 5 | 374****97 | 901****65 | SEAL,DRIVE SHAFT,FRONT AXLE (PRODUCTION NO. 90288278) | 2 |
|
| 6 | 370****31 | 903****40 | ADJUSTER,DIFFERENTIAL BEARING | 1 |
|
| 7 | 370****05 | 900****48 | SEAL,ADJUSTER,DIFFERENTIAL BEARING | 1 |
|
| 8 | 370****06 | 900****53 | PLATE,LOCK,ADJUSTER,DIFFERENTIAL BEARING | 1 |
|
| 9 | 200****17 | 110****43 | SCREW,HEX.HD.,M6 X 16,LOCK PLATE RETAINING | 1 |
|
| 10 | 151****81 | 905****17 | COMPOUND,LOCKING,50ML,RING GEAR TO DIFFERENTIAL CASE (USE IN CONJUNCTION WITH 90297304) | AR |
|
| 10 | 194****88 | 900****13 | GREASE,LUBRICATING,BEARING,DIFFERENTIAL,200 ML (NLS.- USE 90510259) | AR |
|
