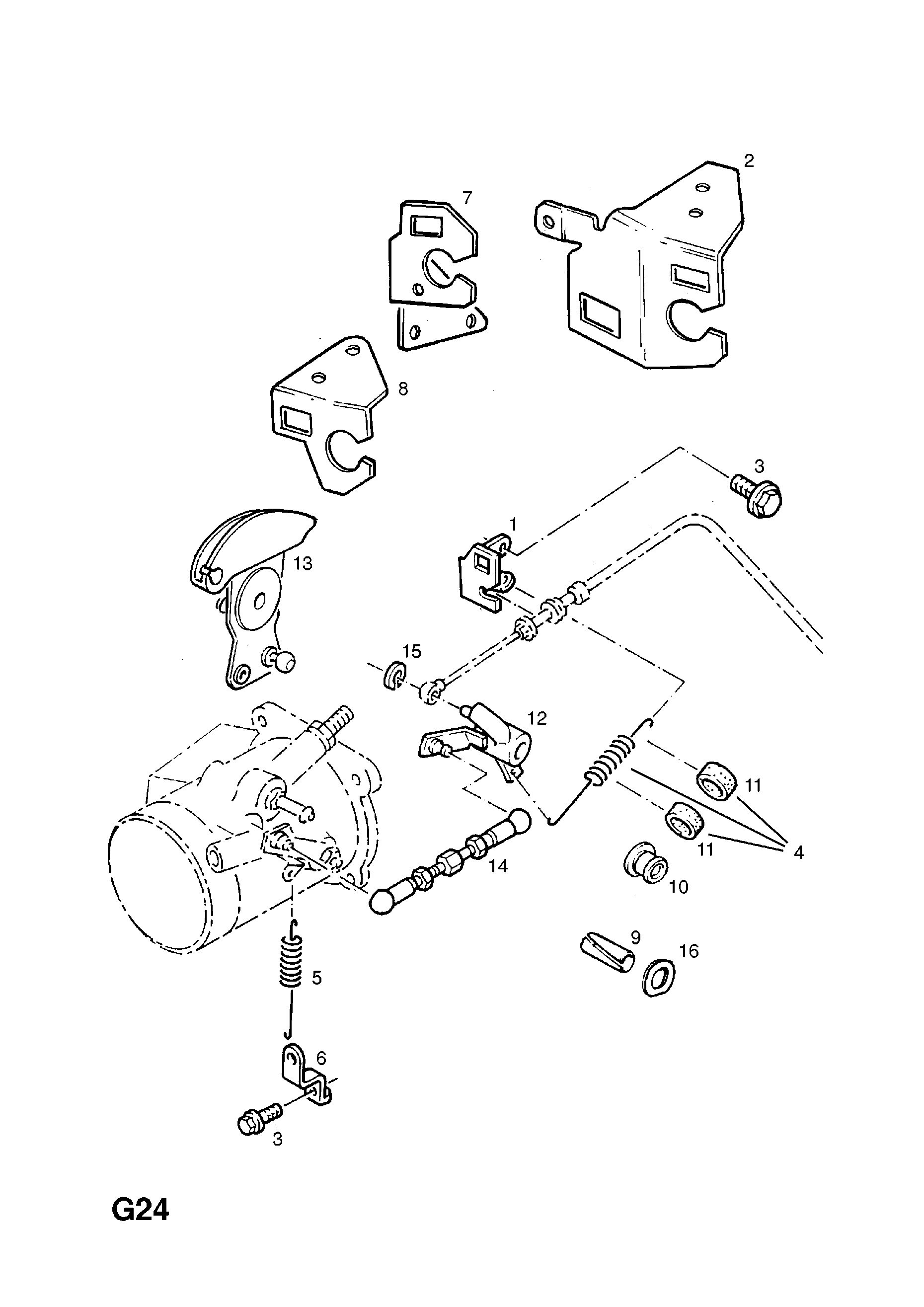

| PNC | Rész kódja | GM rész száma | Cím | Mennyiség | Információ |
i |
|---|
| 1 | 8 48 809 | 90285411 | BRACKET,COUNTER,CONTROL CABLE | 1 |
|
| 2 | 8 48 806 | 90278424 | BRACKET,COUNTER,CONTROL CABLE (NLS.- NO REPLACEMENT PART) | 1 |
|
| 3 | 20 18 052 | 11048672 | SCREW,HEX.HD.,M6 X 15,BRACKET TO INDUCTION MANIFOLD (ORDER IN MULTIPLES OF 10) (NLS.- USE 11048677) | 2 |
|
| 4 | 8 46 737 | 90232401 | SPRING,RETURN,ACCELERATOR CONTROL | 1 |
|
| 5 | 8 46 736 | 90232403 | SPRING,RETURN,ACCELERATOR CONTROL (NLS.- NO REPLACEMENT PART) | 1 |
|
| 5 | 8 46 742 | 90285135 | SPRING,RETURN,ACCELERATOR CONTROL (NLS.- NO REPLACEMENT PART) (PRODUCTION NO. 90285134) | 1 |
|
| 5 | 8 46 740 | 90278540 | SPRING,RETURN,ACCELERATOR CONTROL (NLS.- NO REPLACEMENT PART) | 1 |
|
| 6 | 8 46 754 | 90080200 | BRACKET,RETURN SPRING (NLS.- NO REPLACEMENT PART) | 1 |
|
| 6 | 8 46 755 | 90281567 | BRACKET,RETURN SPRING (NLS.- NO REPLACEMENT PART) | 1 |
|
| 7 | 8 48 567 | 90352101 | BRACKET,ACCELERATOR CONTROL CABLE | 1 |
|
| 8 | 8 48 566 | 90354375 | BRACKET,ACCELERATOR CONTROL CABLE (NLS.- NO REPLACEMENT PART) | 1 |
|
| 9 | 8 46 371 | 90156685 | BUSH,LEVER TO BRACKET (NLS.- NO REPLACEMENT PART) | |
|
| 10 | 8 46 373 | 90220397 | BUSH,RETURN SPRING (NLS.- NO REPLACEMENT PART) | |
|
| 11 | 8 42 700 | 3456297 | RING,DAMPER,RETURN SPRING,16.5MM ID. (NLS.- NO REPLACEMENT PART) | 2 |
|
| 12 | 8 46 350 | 90281905 | LEVER,ANGLE,ACCELERATOR CONTROL (NLS.- USE 90325596) | 1 |
|
| ⤷ | 8 46 321 | 90325596 | LEVER,ANGLE,ACCELERATOR CONTROL (NLS.- NO REPLACEMENT PART) | 1 |
|
| 13 | 8 46 326 | 90278438 | LEVER,ANGLE,ACCELERATOR CONTROL | 1 |
|
| 14 | 8 46 509 | 90091864 | ROD,ACCELERATOR CONTROL (NLS.- NO REPLACEMENT PART) | 1 |
|
| 15 | 20 80 743 | 11048784 | WASHER,SAFETY,7.0MM,ANGLE LEVER,ACCELERATOR CONTROL | 1 |
|
| 16 | 20 80 827 | 11091871 | WASHER,TENSION,8.2MM | 1 |
|
