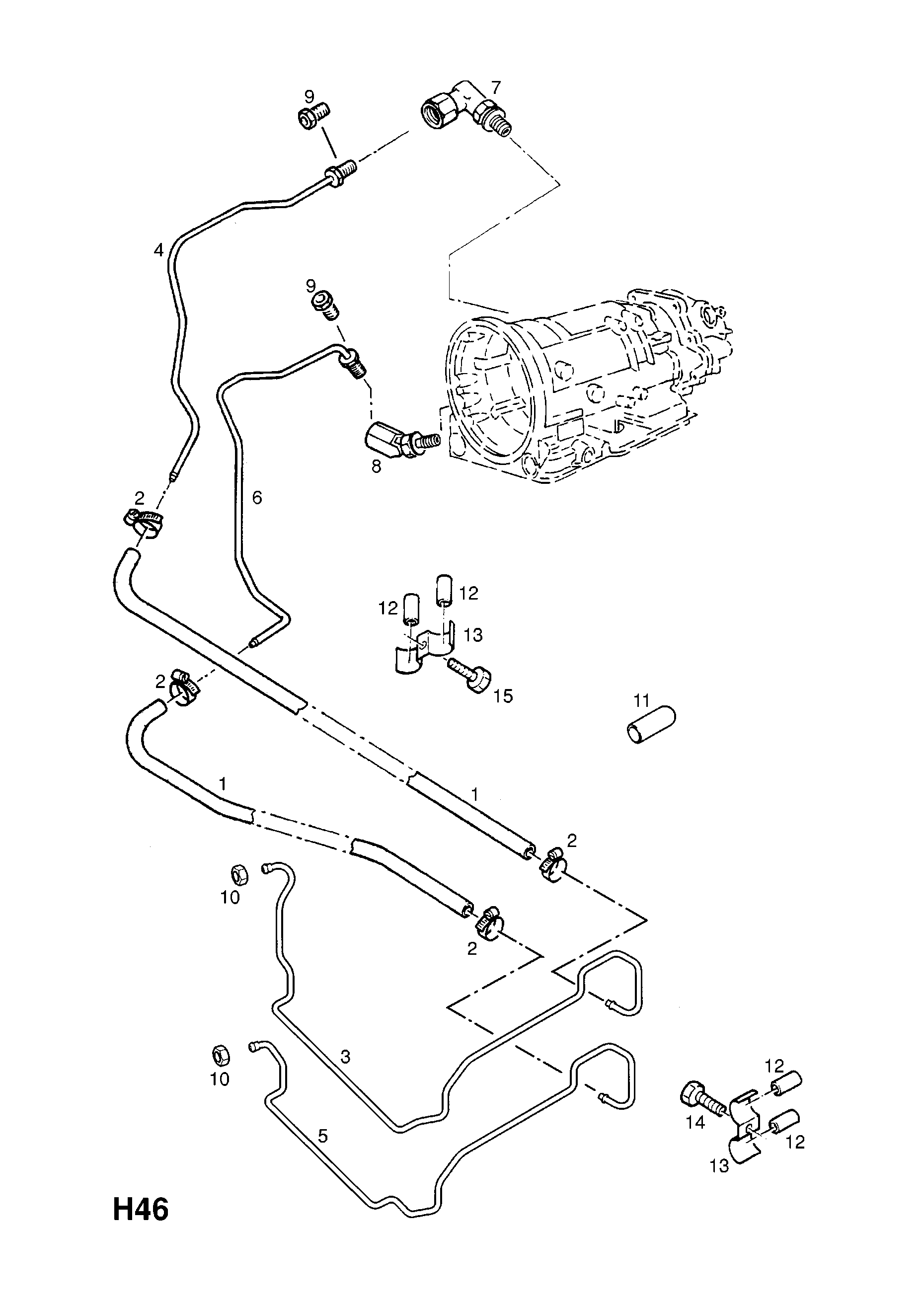

| PNC | Rész kódja | GM rész száma | Cím | Mennyiség | Információ |
i |
|---|
| 1 | 753****73 | 903****54 | HOSE,OIL COOLER,9.5MM ID. X 365MM | AR |
|
| 2 | 209****13 | 110****31 | CLAMP,10-16,HOSE | 2 |
|
| 3 | 753****67 | 904****81 | PIPE,OIL COOLER OUTLET | 1 |
|
| 4 | 753****54 | 904****80 | PIPE,OIL COOLER INLET,REAR | 1 |
|
| 5 | 753****64 | 904****79 | PIPE,OIL COOLER INLET (EXC. HEAVY DUTY COOLING) (NLS.- NO REPLACEMENT PART) | 1 |
|
| 5 | 753****68 | 904****83 | PIPE,OIL COOLER INLET (FOR HEAVY DUTY COOLING) | 1 |
|
| 6 | 753****76 | 904****82 | PIPE,OIL COOLER OUTLET,REAR | 1 |
|
| 7 | 753****59 | 960****77 | CONNECTOR,OIL COOLER INLET (NLS.- USE 96023299) | 1 |
|
| 8 | 753****58 | 960****76 | CONNECTOR,OIL COOLER OUTLET (NLS.- NO REPLACEMENT PART) | 1 |
|
| 9 | 209****03 | 110****01 | SCREW,M16 (NLS.- NO REPLACEMENT PART) | AR |
|
| 10 | 209****94 | 110****83 | NUT,UNION,M16 (NLS.- USE 90121020) | 2 |
|
| 11 | 904****41 | 900****91 | CAP,PROTECTING (NLS.- NO REPLACEMENT PART) | 1 |
|
| 12 | 753****81 | 903****36 | GROMMET,10.3 X 20 X 3.5 (NLS.- NO REPLACEMENT PART) | 2 |
|
| 13 | 753****97 | 903****58 | CLAMP,MOUNTING | AR |
|
| 14 | 202****05 | 110****11 | SCREW,TAPERED HEX.HD.,4.8 X 16,OIL COOLER PIPE TO FRONT FRAME (NLS.- NO REPLACEMENT PART) | AR |
|
| 15 | 202****08 | 110****21 | SCREW,TAPERED HEX.HD.,4.8 X 13,OIL COOLER PIPE TO FRONT FRAME | AR |
|
