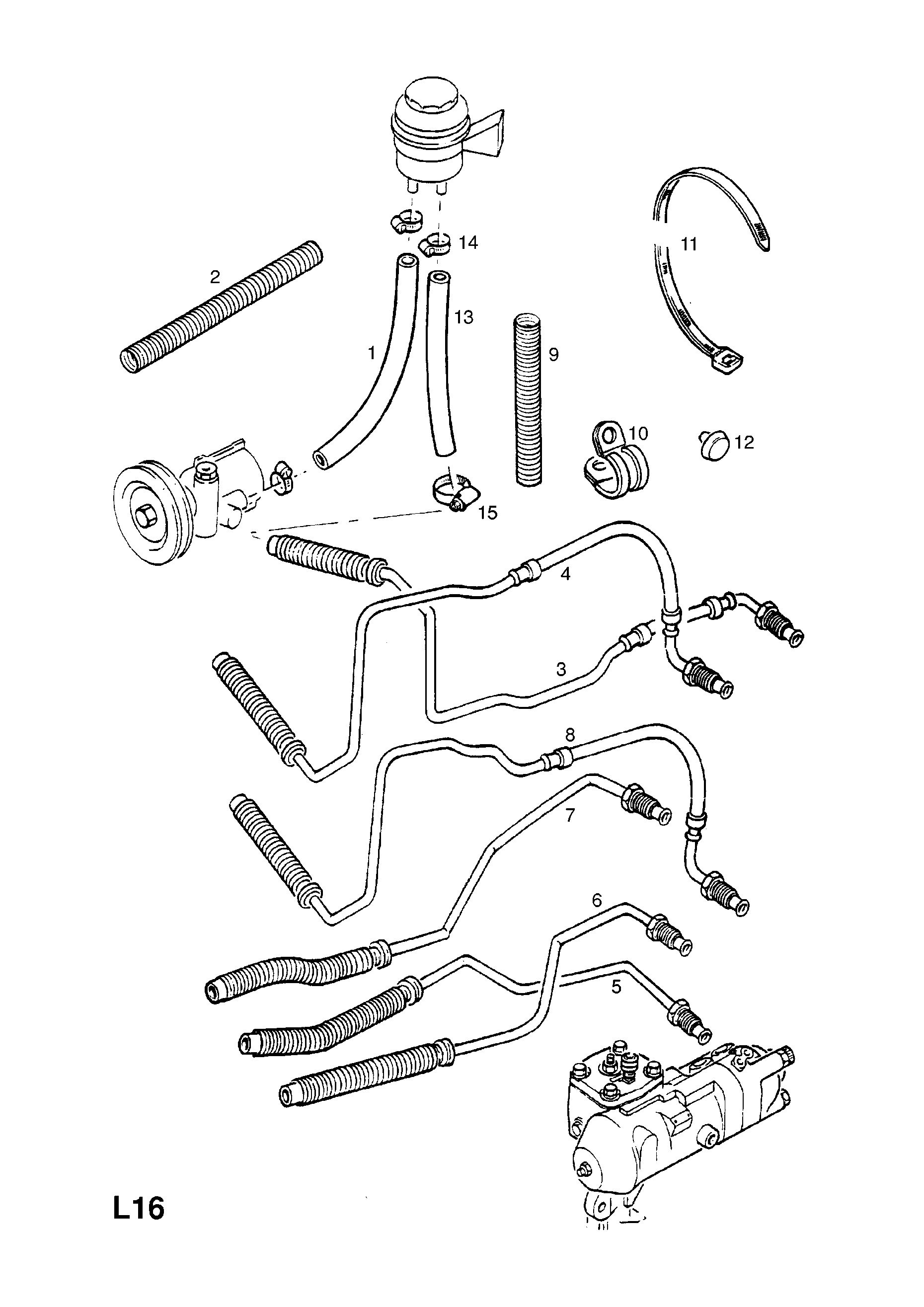

| PNC | Rész kódja | GM rész száma | Cím | Mennyiség | Információ |
i |
|---|
| 1 | 950****47 | 902****67 | HOSE,SUCTION,RESERVOIR TO PUMP | 1 |
|
| 2 | 951****15 | 903****27 | HOSE,PROTECTION (NLS.- NO REPLACEMENT PART) | 1 |
|
| 3 | 950****71 | 903****16 | PIPE,ASSY.,RETURN,STEERING GEAR TO RESERVOIR,WITH PROTECTIVE COVER,LHD (NLS.- NO REPLACEMENT PART) | 1 |
|
| 4 | 951****24 | 903****34 | PIPE,ASSY.,RETURN,STEERING GEAR TO RESERVOIR,WITH PROTECTIVE COVER,LHD | 1 |
|
| 5 | 950****69 | 903****24 | PIPE,ASSY.,RETURN,STEERING GEAR TO RESERVOIR,WITH PROTECTIVE COVER,RHD (NLS.- NO REPLACEMENT PART) | 1 |
|
| 6 | 950****72 | 903****13 | PIPE,ASSY.,RETURN,STEERING GEAR TO RESERVOIR,WITH PROTECTIVE COVER,RHD (NLS.- NO REPLACEMENT PART) | 1 |
|
| 7 | 951****08 | 903****34 | PIPE,ASSY.,RETURN,STEERING GEAR TO RESERVOIR,WITH PROTECTIVE COVER,RHD | 1 |
|
| 8 | 951****25 | 903****17 | PIPE,ASSY.,RETURN,STEERING GEAR TO RESERVOIR,LHD (NLS.- NO REPLACEMENT PART) | 1 |
|
| 9 | 951****44 | 903****12 | HOSE,PROTECTION | 1 |
|
| 10 | 650****86 | 901****53 | CLAMP,RETURN PIPE | 4 |
|
| 11 | 951****84 | 901****47 | STRAP,368 X 7.6,HOSE RETAINING (NLS.- NO REPLACEMENT PART) | 1 |
|
| 12 | 121****41 | 343****07 | BUMP STOP (NLS.- NO REPLACEMENT PART) | AR |
|
| 13 | 951****45 | 903****78 | HOSE,18.0 ID.,RETURN PIPE TO RESERVOIR (260MM LONG) (NLS.- NO REPLACEMENT PART) | 1 |
|
| 14 | 209****18 | 110****01 | CLAMP,HOSE,12-20,RETURN HOSE TO RESERVOIR | 1 |
|
| 15 | 209****16 | 110****12 | CLAMP,HOSE,16-27,RETURN HOSE TO RESERVOIR | 2 |
|
