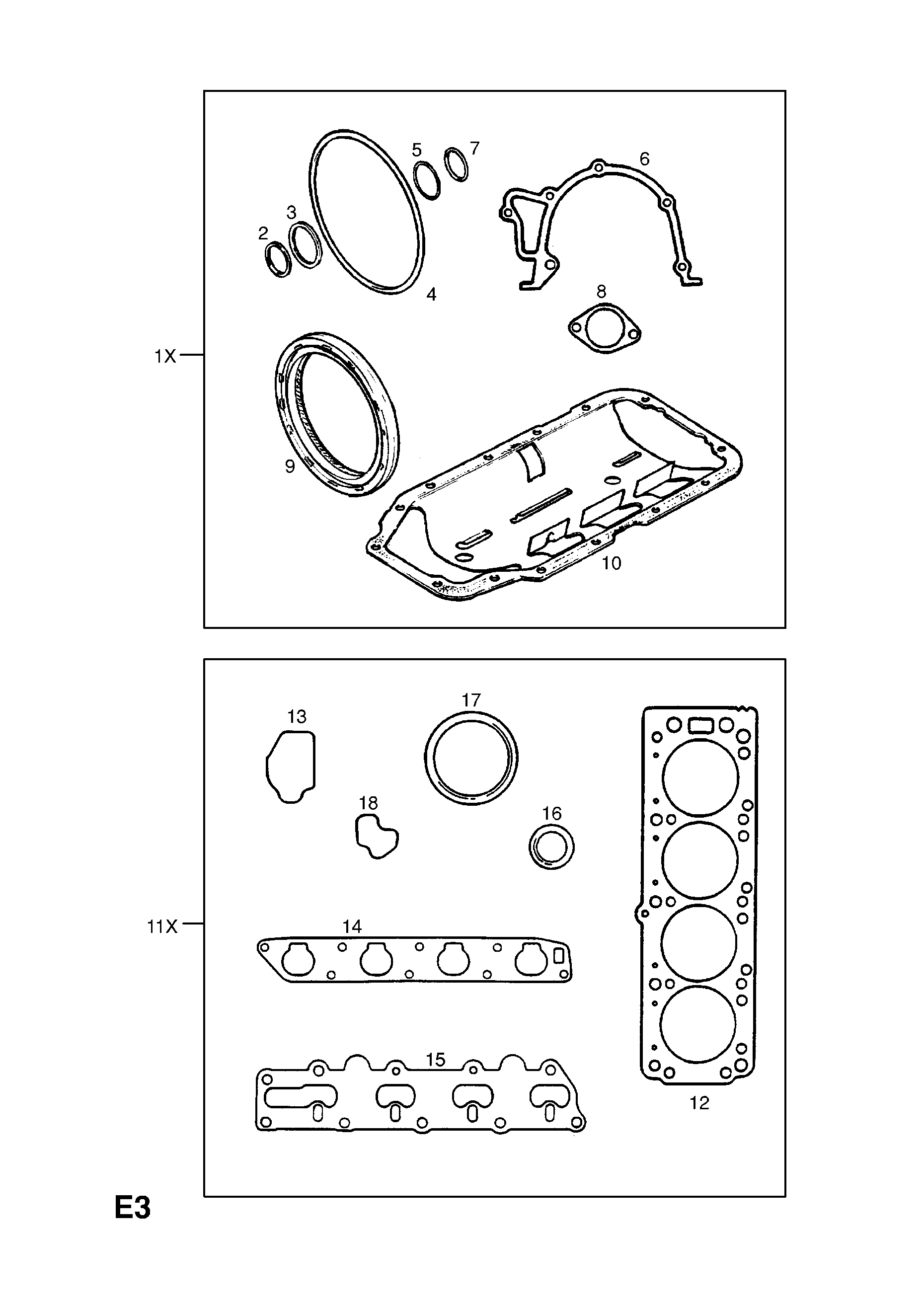

| PNC | Rész kódja | GM rész száma | Cím | Mennyiség | Információ |
i |
|---|
| 1X | 16 06 834 | 90511798 | GASKET SET,BOTTOM OVERHAUL | 1 |
|
| 2 | 20 91 046 | 11023582 | -SEAL,RING,14 X 20 MM | 1 |
|
| 3 | 20 91 053 | 11093042 | -SEAL,RING,20 X 24 MM | 1 |
|
| 4 | 13 34 748 | 90322506 | -SEAL,RING (NLS.- USE 90467121) | 1 |
|
| 5 | 12 38 710 | 90307502 | -SEAL,RING,SENSOR | 1 |
|
| 6 | 6 46 284 | 90353421 | -GASKET,OIL PUMP TO CYLINDER BLOCK (NLS.- USE 90573825) | 1 |
|
| ⤷ | 6 46 914 | 90573825 | -GASKET,OIL PUMP TO CYLINDER BLOCK (NLS.- USE 55354630) | 1 |
|
| 7 | 6 48 406 | 90190637 | -GASKET,SUCTION TUBE | 1 |
|
| 8 | 6 56 842 | 90500571 | -GASKET,VENTILATION TUBE (NLS.- USE 92067502) | 1 |
|
| 17 | 6 14 829 | 90280462 | -SEAL,RING,90 X 104 X 11 MM,REAR BEARING (NLS.- USE 90325572) (PRODUCTION NO. 90354378) | 1 |
|
| 10 | 6 52 261 | 90411928 | -BAFFLE,ASSY. (NLS.- USE 90528632) (PRODUCTION NO. 90411929) | 1 |
|
| ⤷ | 6 52 274 | 90528632 | -BAFFLE,ASSY.,WITH VULCANISED GASKET | 1 |
|
| 11X | 16 06 823 | 90511689 | GASKET SET,CYLINDER HEAD OVERHAUL | 1 |
|
| 12 | 6 07 987 | 90398050 | -GASKET,CYLINDER HEAD | 1 |
|
| 13 | 13 38 217 | 90220436 | -SEAL,RING (NLS.- USE 9129998) | 1 |
|
| 14 | 8 50 645 | 90409644 | -GASKET,MANIFOLD TO CYLINDER HEAD | 1 |
|
| 15 | 58 50 608 | 90499338 | -GASKET,MANIFOLD TO CYLINDER HEAD | 1 |
|
| 16 | 56 36 970 | 90298390 | -SEAL,RING,35 X 48 X 7 MM,CAMSHAFT | 2 |
|
| 18 | 6 07 504 | 90411954 | -GASKET (NLS.- USE 9157004) | 1 |
|
