STEERING GEAR VAUXHALL OMEGA-B Magyarország

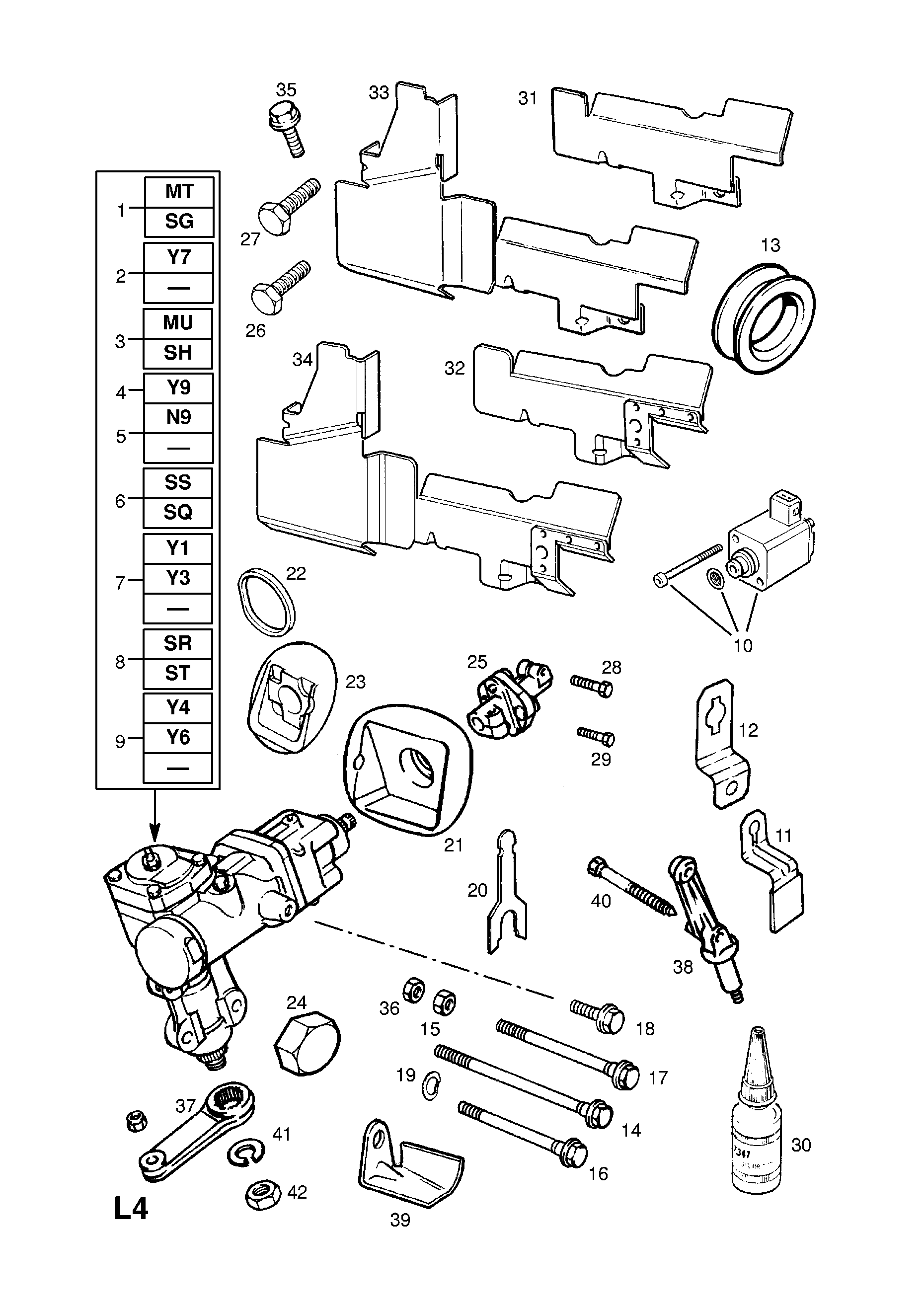

Scheme VAUXHALL OMEGA-B STEERING GEAR
PNCRész kódjaGM rész számaCímMennyiség
19 00 292 90447770 GEAR,ASSY.,STEERING,LHD (IDENT MT,SG) (PLEASE REFER TO TECHNICAL BULLETIN TI-C-75 M18 DATED 9/96) (NLS.- USE 90538679) (EXCHANGE PART 90511410 OPEL)1
⤷9 00 328 90538679 GEAR,ASSY.,STEERING,LHD (IDENT Y7) (NLS.- USE 9227769) (EXCHANGE PART 90541368 OPEL)1
29 00 396 9227769 GEAR,ASSY.,STEERING,LHD (EXCEPT VARIABLE EFFORT POWER STEERING) (EXCHANGE PART 9195804 OPEL) (NLS.- NO REPLACEMENT PART)1
39 00 293 90447771 GEAR,ASSY.,STEERING,RHD (IDENT MU,SH) (PLEASE REFER TO TECHNICAL BULLETIN TI-C-75 M18 DATED 9/96) (NLS.- USE 90538680 AND SUPPLY 90538448) (EXCHANGE PART 90511411 OPEL)1
⤷9 00 329 90538680 GEAR,ASSY.,STEERING,RHD (IDENT Y9) (NLS.- USE 90576805) (PRODUCTION NO. 90538682)1
⤷9 05 631 90538448 SEAL,STEERING GEAR TO DASH PANEL,RHD (NLS.- NO REPLACEMENT PART)1
59 00 362 90576805 GEAR,ASSY.,STEERING,RHD (IDENT N9) (NLS.- USE 9227772) (EXCHANGE PART 9117224 OPEL,R1600006 VAUXHALL) (PRODUCTION NO. 90576806)1
⤷9 00 399 9227772 GEAR,ASSY.,STEERING,RHD (EXCHANGE PART 9195805 OPEL,R1600007 VAUXHALL) (NLS.- NO REPLACEMENT PART)1
69 00 298 90496588 GEAR,ASSY.,STEERING,LHD (IDENT SS,SQ) (VARIABLE EFFORT TYPE) (NLS.- USE 90538728,90538447,11094532) (PLEASE REFER TO TECHNICAL BULLETIN TI-C-75 M18 DATED 9/96) (EXCHANGE PART 90511414 OPEL)1
⤷9 00 330 90538728 GEAR,ASSY.,STEERING,LHD (IDENT Y1,Y3) (VARIABLE EFFORT TYPE) (NLS.- USE 9227771) (EXCHANGE PART 90541370 OPEL)1
⤷9 05 630 90538447 SEAL,STEERING GEAR TO DASH PANEL,LHD (NLS.- NO REPLACEMENT PART)1
⤷20 00 488 11094532 SCREW,M10 X 105,STEERING GEAR TO SIDEMEMBER,RHD (NLS.- USE 11099171)1
79 00 398 9227771 GEAR,ASSY.,STEERING,LHD (VARIABLE EFFORT TYPE) (EXCHANGE PART 9195806 OPEL) (NLS.- USE 9195806)1
89 00 299 90496589 GEAR,ASSY.,STEERING,RHD (IDENT SR,ST) (VARIABLE EFFORT TYPE) (NLS.- USE 90538729,90538448) (PLEASE REFER TO TECHNICAL BULLETIN TI-C-75 M18 DATED 9/96) (EXCHANGE PART R1100023 VAUXHALL)1
⤷9 00 331 90538729 GEAR,ASSY.,STEERING,RHD (IDENT Y4,Y6) (VARIABLE EFFORT TYPE) (NLS.- USE 9227770) (EXCHANGE PART 90541371 OPEL,R1600001 VAUXHALL)1
⤷9 05 631 90538448 SEAL,STEERING GEAR TO DASH PANEL,RHD (NLS.- NO REPLACEMENT PART)1
99 00 397 9227770 GEAR,ASSY.,STEERING,RHD (VARIABLE EFFORT TYPE) (NLS.- USE 24460153) (EXCHANGE PART 9195807 OPEL,R1600008 VAUXHALL)1
⤷59 00 215 24460153 GEAR,ASSY.,STEERING,RHD (VARIABLE EFFORT TYPE) (ZF) (EXCHANGE PART 9195807 OPEL,R1600008 VAUXHALL) (PRODUCTION NO. 24460154)1
109 02 250 90487785 VALVE,SOLENOID1
119 51 909 90495235 BRACKET,STEERING GEAR (NLS.- NO REPLACEMENT PART)1
129 00 835 90473822 BRACKET,STEERING GEAR (NLS.- NO REPLACEMENT PART)1
139 02 833 90539718 COLLAR,STEERING GEAR (NLS.- NO REPLACEMENT PART)1
1420 00 587 11094661 SCREW,M10 X 136,STEERING GEAR TO SIDEMEMBER,LHD (NLS.- NO REPLACEMENT PART)1
1420 00 984 11099171 SCREW,HEX.HD.,M10 X 1.5 X 115,STEERING GEAR TO SIDEMEMBER (NLS.- NO REPLACEMENT PART)2
1520 64 899 11096133 NUT,HEX.,M10 X 1.5,STEERING GEAR TO SIDEMEMBER4
189 00 962 90541901 SCREW,HEX.HD.,M10 X 20,STEERING GEAR TO WHEELHOUSE (PRODUCTION NO. 90539636)1
1920 82 108 11029779 WASHER,SPRING,10.5 (NLS.- USE 11029777)3
203 10 754 8946928 CLAMP,EQUALIZER,0.4MM THICK,STEERING GEAR TO WHEELHOUSE (NLS.- NO REPLACEMENT PART)AR
203 10 755 8946929 CLAMP,EQUALIZER,0.75MM THICK,STEERING GEAR TO WHEELHOUSE (NLS.- NO REPLACEMENT PART)AR
203 10 756 8946930 CLAMP,EQUALIZER,1.5MM THICK,STEERING GEAR TO WHEELHOUSE (NLS.- NO REPLACEMENT PART)AR
203 10 757 8946931 CLAMP,EQUALIZER,3.0MM THICK,STEERING GEAR TO WHEELHOUSE (NLS.- NO REPLACEMENT PART)AR
219 05 625 90447802 SEAL,STEERING GEAR TO DASH PANEL (NLS.- USE 90538447)1
⤷9 05 630 90538447 SEAL,STEERING GEAR TO DASH PANEL,LHD (NLS.- NO REPLACEMENT PART)1
229 05 626 90496934 SEAL,STEERING GEAR TO DASH PANEL (NLS.- NO REPLACEMENT PART)1
239 05 628 90497377 SEAL,STEERING GEAR TO DASH PANEL,LHD (NLS.- USE 90538447)1
⤷9 05 630 90538447 SEAL,STEERING GEAR TO DASH PANEL,LHD (NLS.- NO REPLACEMENT PART)1
239 05 627 90497378 SEAL,STEERING GEAR TO DASH PANEL,RHD (NLS.- USE 90538448)1
⤷9 05 631 90538448 SEAL,STEERING GEAR TO DASH PANEL,RHD (NLS.- NO REPLACEMENT PART)1
249 02 834 90539719 CAP,PROTECTION,STEERING GEAR TO STEERING COLUMN (FOR REDUCED EFFORT POWER STEERING)1
259 05 324 90350194 COUPLING,STEERING GEAR TO COLUMN (PRODUCTION NO. 90334136)1
289 05 914 90297665 SCREW,HEX.HD.,M8 X 28,STEERING COUPLING TO STEERING GEAR (NLS.- USE 90541108)1
279 05 922 90541942 SCREW,HEX.HD.,M8 X 28,STEERING COLUMN TO STEERING COUPLING (NLS.- NO REPLACEMENT PART) (PRODUCTION NO. 90539459)1
2920 48 996 90541453 SCREW,FILL HD.,M8 X 30,STEERING COUPLING TO STEERING GEAR (NLS.- USE 90541939) (PRODUCTION NO. 11098481)1
3015 10 177 90167347 LOCKING COMPOUND,10ML (NLS.- USE 90542117)1
319 00 918 90447777 PLATE,PROTECTION,LHD (NLS.- NO REPLACEMENT PART)1
3259 00 902 24420431 PLATE,PROTECTION,LHD (NLS.- NO REPLACEMENT PART)1
339 00 917 90447775 PLATE,PROTECTION,LHD (REDUCED EFFORT TYPE) (NLS.- USE 9158170)1
⤷9 00 900 9158170 PLATE,PROTECTION,LHD (VARIABLE EFFORT TYPE) (NLS.- NO REPLACEMENT PART)1
339 00 916 90447778 PLATE,PROTECTION,RHD (REDUCED EFFORT TYPE) (NLS.- USE 9158171)1
⤷9 00 901 9158171 PLATE,PROTECTION,RHD (NLS.- NO REPLACEMENT PART)1
3520 02 051 11072505 SCREW,HEX.HD.,M6 X 10,PROTECTION PLATE,RHD (NLS.- NO REPLACEMENT PART)1
3620 64 882 11091593 NUT,HEX.,M10,STEERING GEAR PROTECTION PLATE,LHD (REDUCED EFFORT TYPE) (NLS.- USE 11091594)2
⤷20 64 903 11091594 NUT,HEX.,M10,STEERING GEAR PROTECTION PLATE,RHD (NLS.- NO REPLACEMENT PART)2
379 10 048 90278818 ARM,DROP (NLS.- NO REPLACEMENT PART)1
379 10 000 9184801 ARM,DROP (NLS.- NO REPLACEMENT PART)1
389 20 636 90445587 BRACKET,INTERMEDIATE STEERING ARM,RHD1
389 20 635 90445588 BRACKET,INTERMEDIATE STEERING ARM,LHD (NLS.- NO REPLACEMENT PART)1
399 20 822 9225586 SHIELD,HEAT,INTERMEDIATE STEERING ARM,RHD (NLS.- NO REPLACEMENT PART) (PRODUCTION NO. 24408181)1
4020 02 624 11096891 SCREW,HEX.HD.,M10 X 100,INTERMEDIATE ARM TO SIDEMEMBER2
4120 74 350 11013331 WASHER,LOCK (NLS.- NO REPLACEMENT PART)1
429 10 981 9280615 NUT,HEX.M22,STEERING DROP ARM (FOR REDUCED EFFORT POWER STEERING) (NLS.- USE 24439980)1
⤷20 64 010 24439980 NUT,HEX.M22,STEERING DROP ARM (FOR REDUCED EFFORT POWER STEERING) (NLS.- NO REPLACEMENT PART)1
429 10 976 90576804 NUT,HEX.M22,STEERING DROP ARM (FOR REDUCED EFFORT POWER STEERING) (NLS.- NO REPLACEMENT PART)1
