INSTRUMENT PANEL COVER VAUXHALL SIGNUM Magyarország

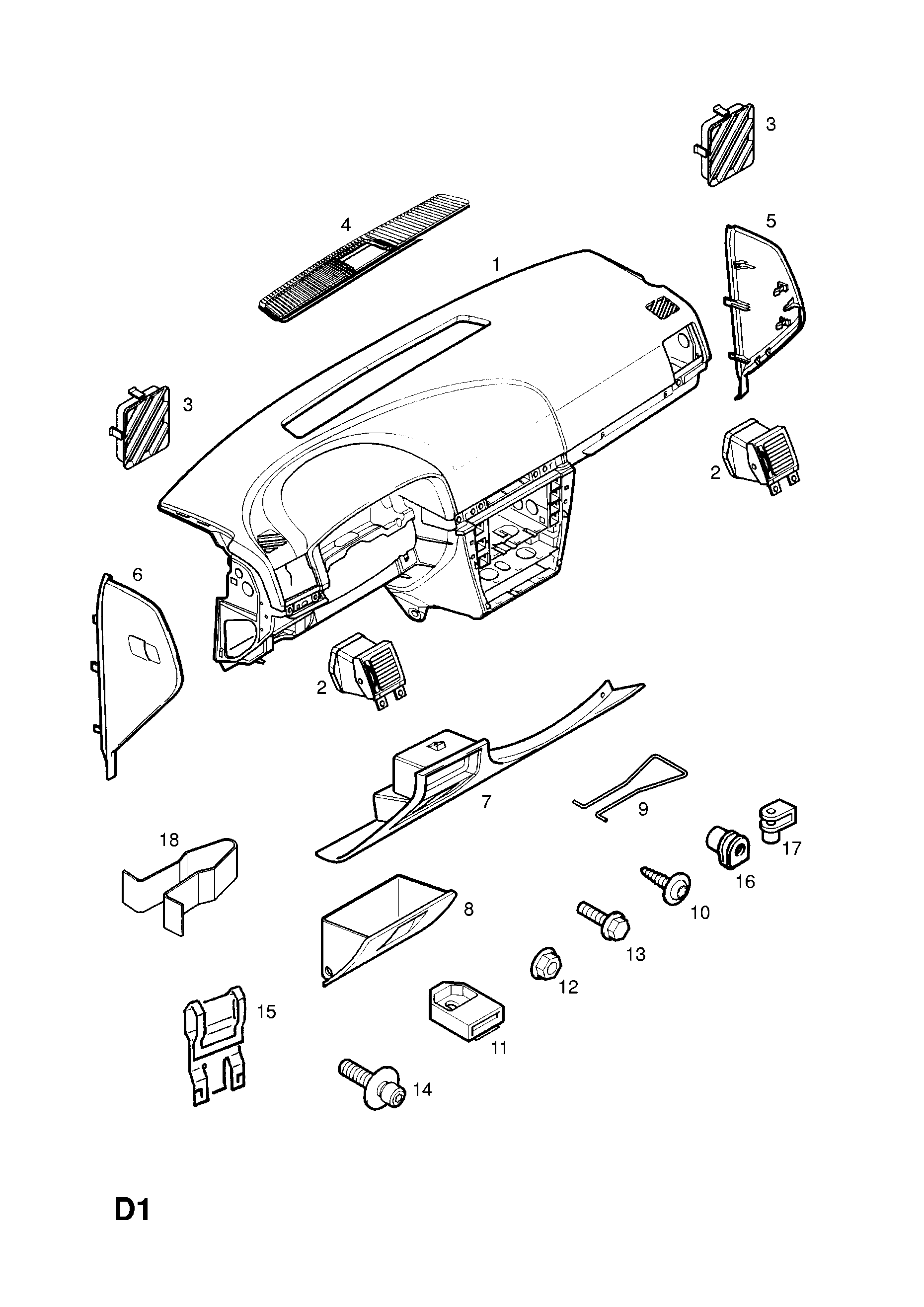

Scheme VAUXHALL SIGNUM INSTRUMENT PANEL COVER
PNCRész kódjaGM rész számaCímMennyiség
11 12 046 13150875 PANEL,COVER,INSTRUMENT,LHD,ANTHRACITE (NLS.- USE 13170545) (PRODUCTION NO. 13139261)1
⤷1 12 049 13170545 PANEL,COVER,INSTRUMENT,LHD,ANTHRACITE (NLS.- USE 93185427) (PRODUCTION NO. 13170526)1
151 12 703 93185427 PANEL,COVER,INSTRUMENT,LHD,ANTHRACITE1
11 12 047 13150876 PANEL,COVER,INSTRUMENT,RHD,ANTHRACITE (NLS.- USE 13170544) (PRODUCTION NO. 13139263)1
⤷1 12 048 13170544 PANEL,COVER,INSTRUMENT,RHD,ANTHRACITE (NLS.- NO REPLACEMENT PART) (PRODUCTION NO. 13170528)1
218 14 666 13150881 -HOUSING,AIR VENT NOZZLE,OUTER,RH (PRODUCTION NO. 9177170)1
218 14 665 13150882 -HOUSING,AIR VENT NOZZLE,OUTER,LH (PRODUCTION NO. 9177169)1
368 14 850 24451170 -GRILLE,SIDE,AIR OUTLET,RH-LHD (PRODUCTION NO. 9229344)1
368 14 849 24451169 -GRILLE,SIDE,AIR OUTLET,LH-LHD (PRODUCTION NO. 9229343)1
368 14 852 24451172 -GRILLE,SIDE,AIR OUTLET,RH-RHD (PRODUCTION NO. 24403320)1
368 14 851 24451171 -GRILLE,SIDE,AIR OUTLET,LH-RHD (PRODUCTION NO. 24403319)1
472 09 035 24444291 -GRILLE,DEFROSTER,INSTRUMENT PANEL,ANTHRACITE (NLS.- USE 13238725) (PRODUCTION NO. 9180760)1
572 08 158 24441420 COVER,INSTRUMENT PANEL,OUTER,RH-LHD,ANTHRACITE (PRODUCTION NO. 9180748)1
672 08 157 24441418 COVER,INSTRUMENT PANEL,OUTER,LH-LHD,ANTHRACITE (PRODUCTION NO. 9180747)1
572 08 156 24441416 COVER,INSTRUMENT PANEL,OUTER,RH-RHD,ANTHRACITE (PRODUCTION NO. 24441410)1
672 08 155 24441414 COVER,INSTRUMENT PANEL,OUTER,LH-RHD,ANTHRACITE (PRODUCTION NO. 24441408)1
751 07 259 24443838 COVER,INSTRUMENT PANEL,LOWER,LHD,ANTHRACITE (NLS.- USE 13156864) (PRODUCTION NO. 9180712)1
⤷51 07 299 13156864 COVER,INSTRUMENT PANEL,LOWER,LHD,ANTHRACITE (PRODUCTION NO. 13156847)1
872 09 045 24442503 -STORAGE COMPARTMENT,INSTRUMENT PANEL,LOWER,LHD,ANTHRACITE (PRODUCTION NO. 24442501)1
751 07 322 13174147 COVER,INSTRUMENT PANEL,LOWER,LHD,ANTHRACITE1
71 07 754 13263213 COVER,INSTRUMENT PANEL,LOWER,LHD,ANTHRACITE (PRODUCTION NO. 13263045)1
751 07 260 24443839 COVER,INSTRUMENT PANEL,LOWER,LHD,GREY (NLS.- USE 13156865) (PRODUCTION NO. 9180712)1
⤷51 07 300 13156865 COVER,INSTRUMENT PANEL,LOWER,LHD,STEEL GREY (PRODUCTION NO. 13156847)1
872 09 046 24442504 -STORAGE COMPARTMENT,INSTRUMENT PANEL,LOWER,LHD,GREY (PRODUCTION NO. 24442501)1
751 07 323 13174148 COVER,INSTRUMENT PANEL,LOWER,LHD,STEEL GREY (NLS.- NO REPLACEMENT PART) (PRODUCTION NO. 13174100)1
751 07 258 24443837 COVER,INSTRUMENT PANEL,LOWER,LHD,BEIGE (NLS.- USE 13156863) (PRODUCTION NO. 9180712)1
⤷51 07 298 13156863 COVER,INSTRUMENT PANEL,LOWER,LHD,CASHMERE (PRODUCTION NO. 13156847)1
872 09 044 24442502 -STORAGE COMPARTMENT,INSTRUMENT PANEL,LOWER,LHD,CASHMERE (PRODUCTION NO. 24442501)1
751 07 321 13174146 COVER,INSTRUMENT PANEL,LOWER,LHD,CASHMERE1
751 07 262 24443844 COVER,INSTRUMENT PANEL,LOWER,RHD,ANTHRACITE (NLS.- USE 13156870) (PRODUCTION NO. 9180714)1
872 09 048 24442507 -STORAGE COMPARTMENT,INSTRUMENT PANEL,LOWER,RHD,ANTHRACITE (PRODUCTION NO. 24442505)1
751 07 325 13174150 COVER,INSTRUMENT PANEL,LOWER,RHD,ANTHRACITE1
71 07 755 13263214 COVER,INSTRUMENT PANEL,LOWER,RHD,ANTHRACITE (PRODUCTION NO. 13263046)1
751 07 263 24443845 COVER,INSTRUMENT PANEL,LOWER,RHD,GREY (NLS.- USE 13156871) (PRODUCTION NO. 9180714)1
872 09 049 24442508 -STORAGE COMPARTMENT,INSTRUMENT PANEL,LOWER,RHD,GREY (PRODUCTION NO. 24442505)1
751 07 326 13174151 COVER,INSTRUMENT PANEL,LOWER,RHD,GREY (NLS.- NO REPLACEMENT PART) (PRODUCTION NO. 13174101)1
751 07 261 24443843 COVER,INSTRUMENT PANEL,LOWER,RHD,BEIGE (NLS.- USE 13156869) (PRODUCTION NO. 9180714)1
872 09 047 24442506 -STORAGE COMPARTMENT,INSTRUMENT PANEL,LOWER,RHD,CASHMERE (PRODUCTION NO. 24442505)1
751 07 324 13174149 COVER,INSTRUMENT PANEL,LOWER,RHD,CASHMERE1
972 09 676 24438352 BRACKET,INSTRUMENT PANEL COMPARTMENT,OUTER1
1017 82 970 90561305 SCREW,FLAT RD.HD.,5 X 20,INSTRUMENT PANEL COVER,LOWERAR
111 03 701 24428655 GUIDE,INSTRUMENT PANEL TO DASH PANEL3
128 17 950 90287467 NUT,PLASTIC,GUIDE3
1322 09 933 9173493 SCREW,HEX.HD.,M6 X 22,INSTRUMENT PANEL FIXINGAR
1220 64 017 11900439 NUT,HEX.,M6,INSTRUMENT PANEL TO DASH PANELAR
1417 82 964 13106276 SCREW,TORX,M6 X 16,INSTRUMENT PANEL FIXING,CENTREAR
1572 09 674 13170535 CLAMP,INSTRUMENT PANEL TO DASH PANELAR
161 96 894 90561279 NUT,CLAMP,YELLOW,INSTRUMENT PANEL COVER TO INSTRUMENT PANELAR
1722 09 943 9114472 NUT,PLASTIC,INSTRUMENT PANEL COVERAR
1820 72 017 13112935 CLAMP,SPRING,INSTRUMENT PANEL COVER TO INSTRUMENT PANEL,OUTER2
11 12 067 13238367 PANEL,ASSY.,INSTRUMENT,LHD,CHARCOAL ANTHRACITE (NLS.- USE 13238723) (PRODUCTION NO. 13238365)1
11 12 068 13238368 PANEL,ASSY.,INSTRUMENT,RHD,CHARCOAL ANTHRACITE (NLS.- USE 13238724) (PRODUCTION NO. 13238366)1
318 14 682 13191975 GRILLE,SIDE,AIR OUTLET,RH (PRODUCTION NO. 13191917)1
318 14 681 13191974 GRILLE,SIDE,AIR OUTLET,LH (PRODUCTION NO. 13191916)1
218 14 680 13191973 HOUSING,AIR VENT NOZZLE,OUTER,RH,CHARCOAL METALLIC,AIR VENT WHEEL,RUBBER (PRODUCTION NO. 13191915)1
218 14 679 13191972 HOUSING,AIR VENT NOZZLE,OUTER,LH,CHARCOAL METALLIC,AIR VENT WHEEL,RUBBER (PRODUCTION NO. 13191914)1
218 14 684 13198826 HOUSING,AIR VENT NOZZLE,OUTER,RH,CHARCOAL METALLIC,AIR VENT WHEEL - GLOSSY CHROME (PRODUCTION NO. 13191913)1
218 14 683 13198825 HOUSING,AIR VENT NOZZLE,OUTER,LH,CHARCOAL METALLIC,AIR VENT WHEEL - GLOSSY CHROME (PRODUCTION NO. 13191912)1
