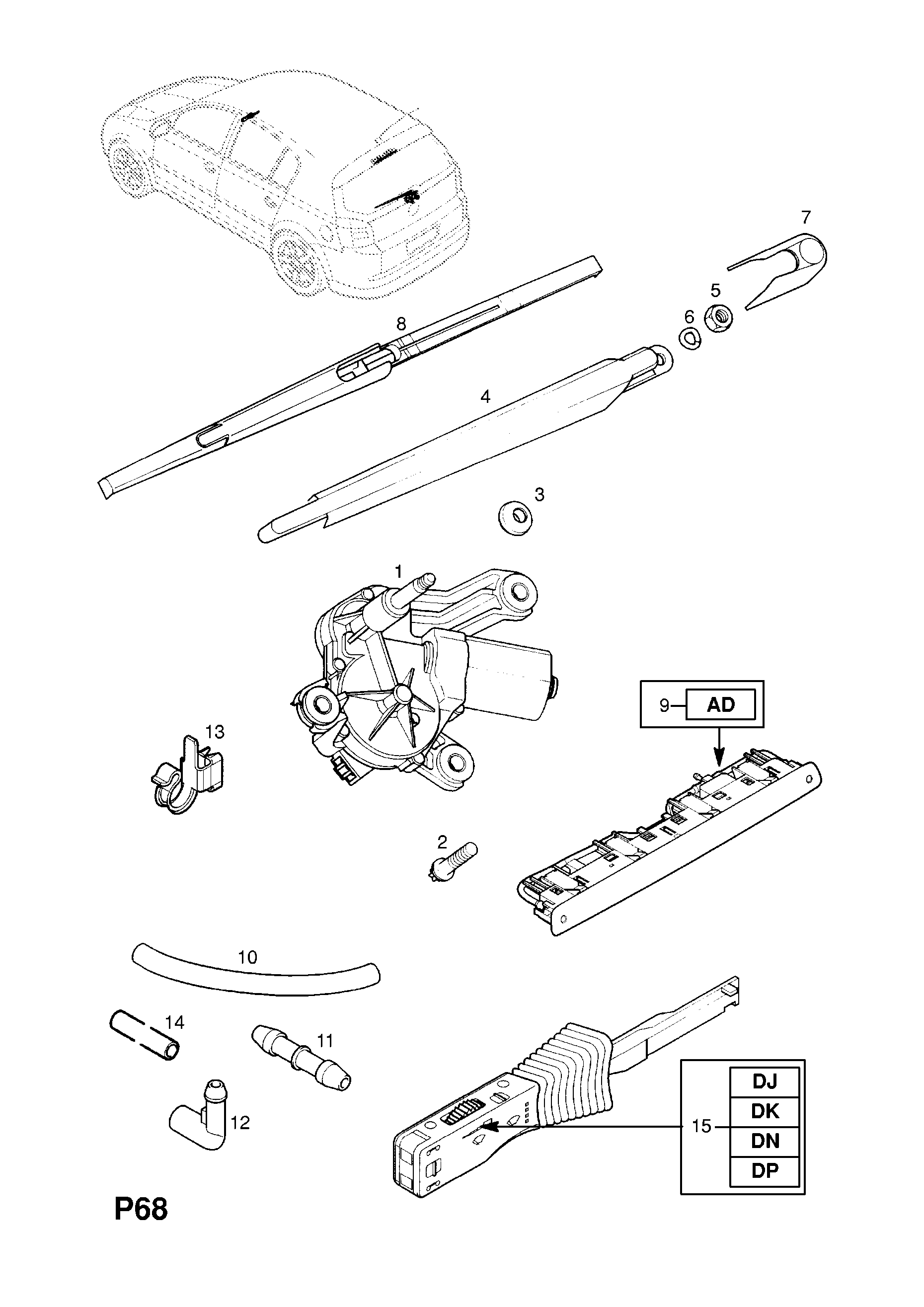

| PNC | Rész kódja | GM rész száma | Cím | Mennyiség | Információ |
i |
|---|
| 1 | 127****76 | 931****52 | MOTOR,ASSY.,TAIL GATE WIPER (PRODUCTION NO. 24417605) | 1 |
|
| 2 | 200****14 | 111****91 | SCREW,TORX,M6 X 22,WIPER MOTOR TO TAIL GATE | 3 |
|
| 3 | 127****10 | 931****75 | GROMMET,TAIL GATE WIPER MOTOR (NLS.- USE 90559606) (PRODUCTION NO. 24454149) | 1 |
|
| 4 | 127****00 | 931****51 | ARM,TAIL GATE WIPER (PRODUCTION NO. 24417607) | 1 |
|
| 5 | 206****16 | 119****25 | NUT,M8,TAIL GATE WIPER ARM TO MOTOR | 1 |
|
| 6 | 127****81 | 902****45 | WASHER,TENSION,ARM TO PIVOT | 1 |
|
| 7 | 127****53 | 931****53 | CAP,TAIL GATE WIPER ARM (PRODUCTION NO. 24428297) | 1 |
|
| 8 | 627****61 | 931****32 | BLADE,TAIL GATE WIPER (400 MM LONG) (EXCEPT VAUXHALL) (NLS.- USE 93185350) | 1 |
|
| ⤷ | 627****89 | 931****50 | BLADE,TAIL GATE WIPER,400 MM LONG,EXCEPT VAUXHALL (NLS.- USE 93196004) | 1 |
|
| 8 | | 931****75 | BLADE,TAIL GATE WIPER (400 MM LONG) (FOR VAUXHALL) (NLS.- USE 93185349) | 1 |
|
| ⤷ | | 931****49 | BLADE,TAIL GATE WIPER (NLS.- USE 93196004) | 1 |
|
| 8 | 627****65 | 931****04 | BLADE,TAIL GATE WIPER,375 MM LONG (CHAMPION) | 1 |
|
| 9 | 122****60 | 931****91 | LAMP,ASSY.,ADDITIONAL BRAKE,WITH WASHER NOZZLE (IDENT AD) | 1 |
|
| 10 | 145****03 | 903****07 | HOSE,2.5 MM ID. X 130 MM,TAIL GATE WASH (NLS.- USE 90589334) (PRODUCTION NO. 9186034) | 1 |
|
| 11 | 145****32 | 904****22 | CONNECTOR,HOSE,TAIL GATE WASH (NLS.- USE 13198761) | 1 |
|
| 12 | 145****47 | 911****97 | CONNECTOR,WASHER HOSE | 1 |
|
| 13 | 145****77 | 244****99 | CLAMP,TAILGATE WASHER HOSE | 5 |
|
| 14 | 145****03 | 905****06 | HOSE,4.5 MM ID. X 10 M,TAIL GATE WASH | 1 |
|
