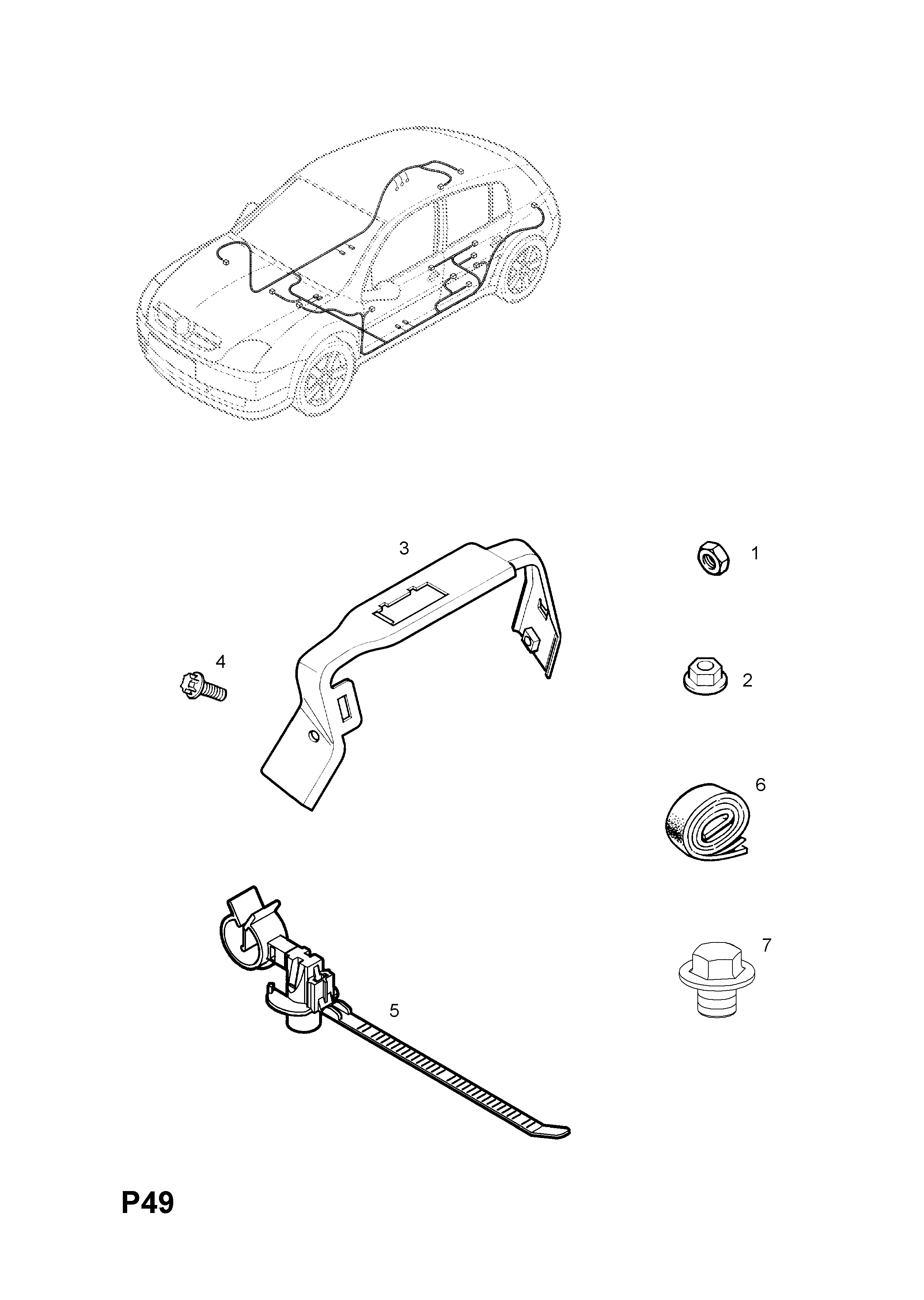

| PNC | Rész kódja | GM rész száma | Cím | Mennyiség | Információ |
i |
|---|
| 1 | 9 12 881 | 11514596 | NUT,HEX.,M8,FRONT BODY HARNESS AND INSTRUMENT PANEL HARNESS TO FUSE BLOCK HOUSING | 1 |
|
| 2 | 12 88 926 | 24441454 | NUT,SPECIAL,HARNESS | 8 |
|
| 3 | 62 88 936 | 24441545 | BRACKET,DATA LINK CONNECTOR,DIAGNOSTIC PLUG,LHD | 1 |
|
| 3 | 62 88 674 | 13157741 | BRACKET,DATA LINK CONNECTOR,DIAGNOSTIC PLUG,LHD | 1 |
|
| 3 | 62 88 937 | 24441546 | BRACKET,DATA LINK CONNECTOR,DIAGNOSTIC PLUG,RHD | 1 |
|
| 3 | 62 88 675 | 13157742 | BRACKET,DATA LINK CONNECTOR,DIAGNOSTIC PLUG,RHD | 1 |
|
| 4 | 20 05 104 | 11093961 | SCREW,TORX,M6 X 16,DATA LINK CONNECTOR BRACKET | 2 |
|
| 5 | 12 88 910 | 24437465 | STRAP,5 X 165 MM,INSTRUMENT PANEL HARNESS AND BODY HARNESS | 1 |
|
| 6 | 17 82 800 | 90148142 | STRIP,DAMPER,1000 X 5 X 40,BODY WIRING HARNESS | AR |
|
| 7 | 12 87 954 | 13273267 | NUT,CONNECTOR,BODY WIRING HARNESS | 4 |
|
