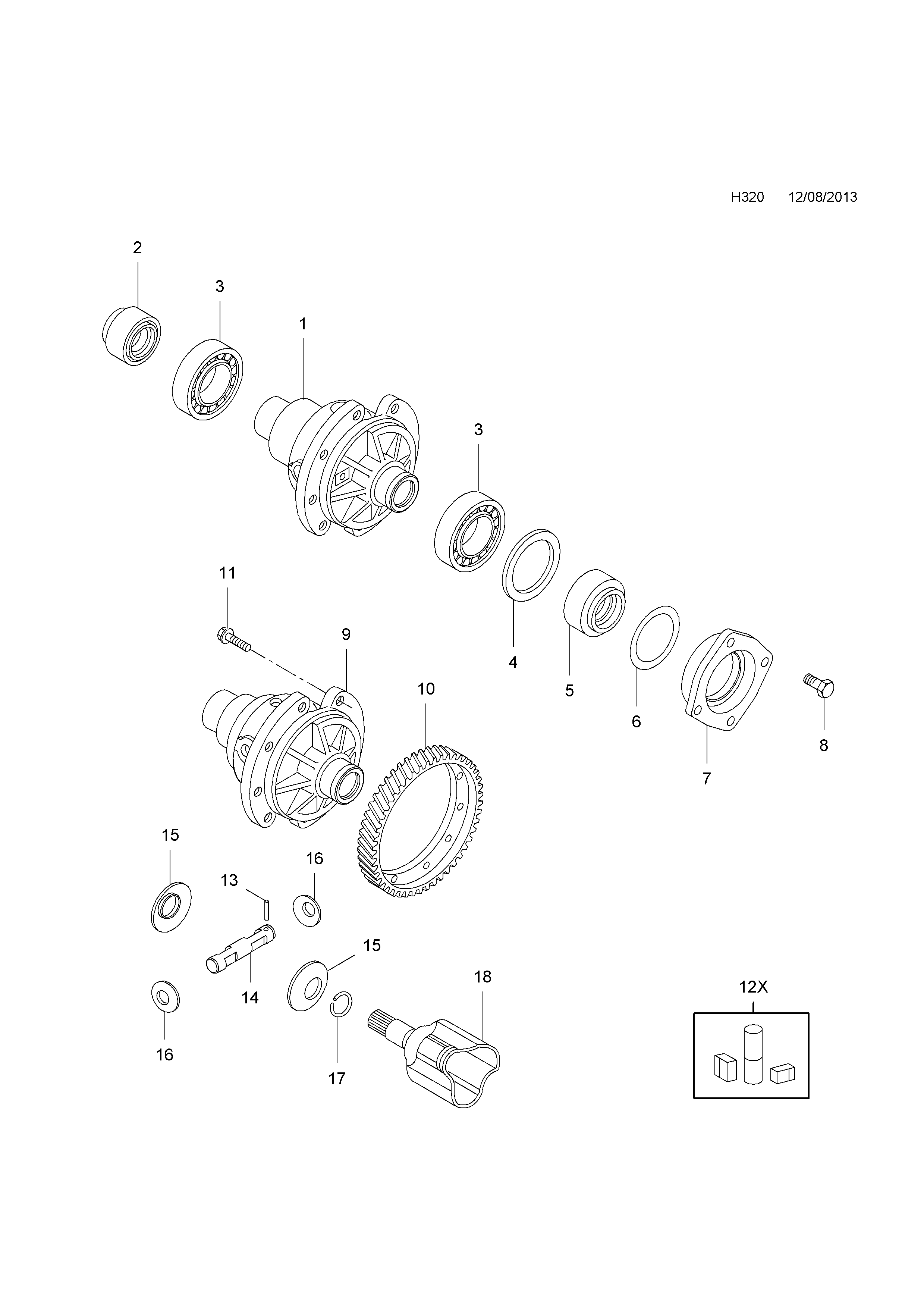

| PNC | Rész kódja | GM rész száma | Cím | Mennyiség | Információ |
i |
|---|
| 1 | 370****99 | 552****08 | CARRIER,ASSY.,DIFFERENTIAL,COMPLETE | 1 |
|
| 2 | 537****89 | 955****65 | SEAL,DRIVE SHAFT,FRONT AXLE,RH | 1 |
|
| 3 | 370****00 | 955****84 | BEARING,DIFFERENTIAL | 2 |
|
| 4 | 370****01 | 955****85 | SHIM,DIFFERENTIAL BEARING,1.70MM THICK | AR |
|
| 4 | 370****02 | 955****86 | SHIM,DIFFERENTIAL BEARING,1.77MM THICK | AR |
|
| 4 | 370****03 | 955****87 | SHIM,DIFFERENTIAL BEARING,1.84MM THICK | AR |
|
| 4 | 370****04 | 955****88 | SHIM,DIFFERENTIAL BEARING,1.91MM THICK | AR |
|
| 4 | 370****05 | 955****89 | SHIM,DIFFERENTIAL BEARING,1.98MM THICK | AR |
|
| 4 | 370****06 | 955****90 | SHIM,DIFFERENTIAL BEARING,2.05MM THICK | AR |
|
| 4 | 370****07 | 955****91 | SHIM,DIFFERENTIAL BEARING,2.12MM THICK | AR |
|
| 4 | 370****08 | 955****92 | SHIM,DIFFERENTIAL BEARING,2.19MM THICK | AR |
|
| 4 | 370****09 | 955****93 | SHIM,DIFFERENTIAL BEARING,2.26MM THICK | AR |
|
| 4 | 370****10 | 955****94 | SHIM,DIFFERENTIAL BEARING,2.33MM THICK | AR |
|
| 4 | 370****11 | 955****95 | SHIM,DIFFERENTIAL BEARING,2.40 MM THICK | AR |
|
| 4 | 370****12 | 955****96 | SHIM,DIFFERENTIAL BEARING,2.47 MM THICK | AR |
|
| 4 | 370****13 | 955****97 | SHIM,DIFFERENTIAL BEARING,2.54MM THICK | AR |
|
| 4 | 370****14 | 955****98 | SHIM,DIFFERENTIAL BEARING,2.61MM THICK | AR |
|
| 4 | 370****15 | 955****99 | SHIM,DIFFERENTIAL BEARING,2.68MM THICK | AR |
|
| 4 | 370****16 | 955****00 | SHIM,DIFFERENTIAL BEARING,2.75MM THICK | AR |
|
| 4 | 370****17 | 955****01 | SHIM,DIFFERENTIAL BEARING,2.82MM THICK | AR |
|
| 4 | 370****18 | 955****02 | SHIM,DIFFERENTIAL BEARING,2.89MM THICK | AR |
|
| 5 | 537****91 | 955****68 | SEAL,DRIVE SHAFT,FRONT AXLE,LH | 1 |
|
| 6 | 300****23 | 955****69 | GASKET,HOUSING,LH | 1 |
|
| 7 | 370****19 | 955****04 | FLANGE | 1 |
|
| 8 | 200****89 | 955****67 | SCREW,FLANGE | 4 |
|
| 9 | 370****20 | 955****05 | CARRIER,DIFFERENTIAL | 1 |
|
| 10 | 371****79 | 552****61 | SPUR,GEAR,DRIVEN | 1 |
|
| 11 | 200****62 | 955****06 | SCREW,HEX.HD.,SPUR GEAR TO DIFFERENTIAL CASE | 10 |
|
| 12X | 371****81 | 955****08 | PINION,SIDE,DIFFERENTIAL,KIT | 1 |
|
| 13 | 208****79 | 955****09 | PIN,DIFFERENTIAL PINION SHAFT | 1 |
|
| 14 | 371****77 | 551****03 | SHAFT,DIFFERENTIAL PINION | 1 |
|
| 15 | 208****28 | 552****51 | WASHER,CUP,DIFFERENTIAL BEVEL GEAR | 2 |
|
| 16 | 208****30 | 552****52 | WASHER,CUP,DIFFERENTIAL BEVEL GEAR | 2 |
|
| 17 | 371****94 | 955****10 | RETAINER | 1 |
|
| 18 | 371****80 | 552****96 | JOINT,INNER,LH | 1 |
|
