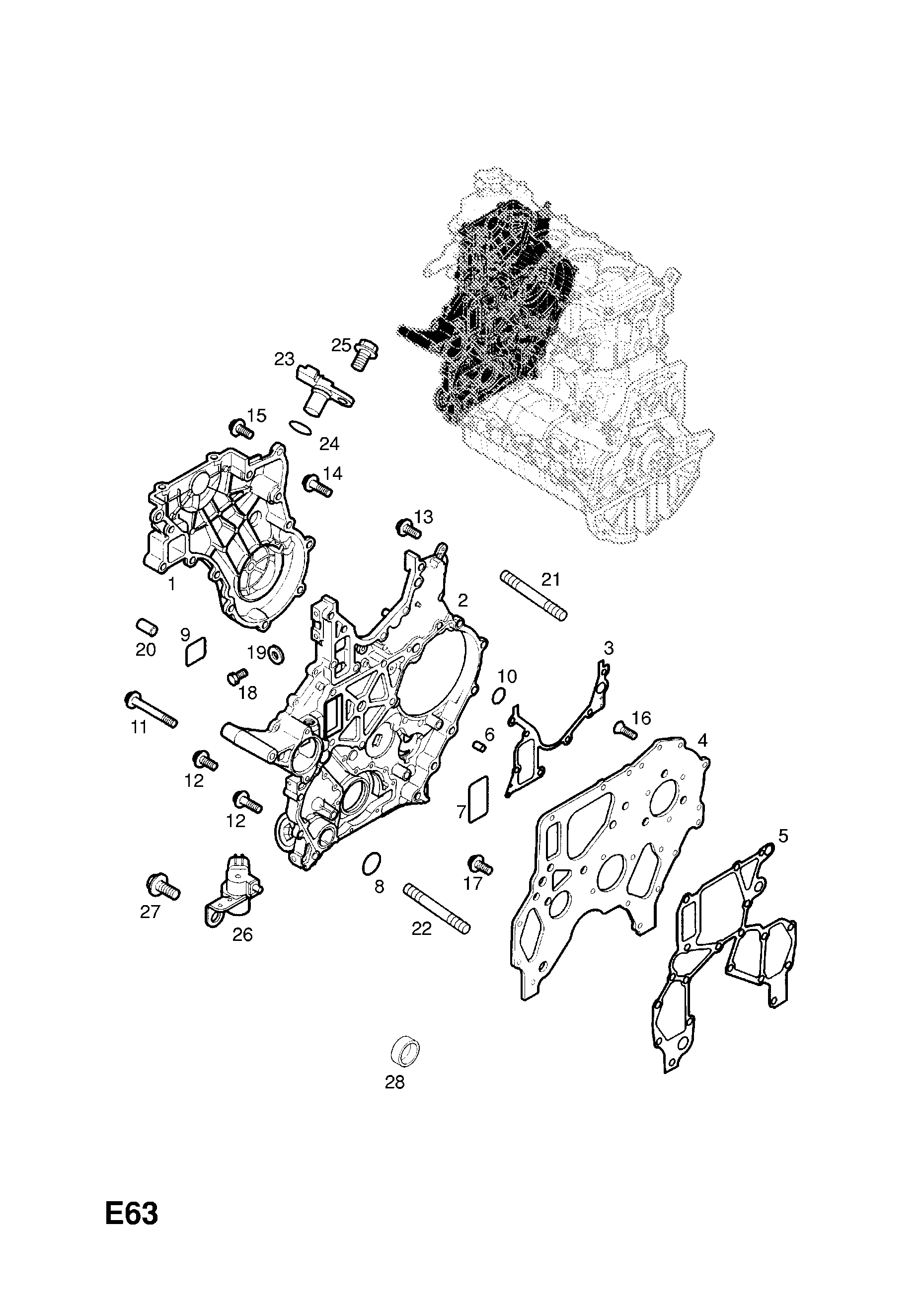

| PNC | Rész kódja | GM rész száma | Cím | Mennyiség | Információ |
i |
|---|
| 1 | 44 15 232 | 93180287 | TIMING CASE,FRONT (NLS.- USE 93182618) | 1 |
|
| 2 | 44 15 231 | 93180286 | TIMING CASE,REAR (NLS.- USE 93185344) | 1 |
|
| ⤷ | 44 16 147 | 93185344 | TIMING CASE,REAR | 1 |
|
| 3 | 44 15 243 | 93180305 | GASKET,TIMING HOUSING TO CYLINDER HEAD (NLS.- USE 95516031) | 1 |
|
| ⤷ | 44 22 044 | 95516031 | GASKET,TIMING HOUSING TO CYLINDER HEAD | 1 |
|
| 4 | 44 15 230 | 93180285 | COVER,TIMING GEAR CASE,REAR (NLS.- USE 93183875) | 1 |
|
| ⤷ | 44 15 917 | 93183875 | COVER,TIMING GEAR CASE,REAR (NLS.- USE 93187006) | 1 |
|
| 4 | 44 16 364 | 93187006 | COVER,TIMING GEAR CASE,REAR | 1 |
|
| 5 | 44 15 233 | 93180289 | GASKET,COVER PLATE (NLS.- USE 93184758) | 1 |
|
| 6 | 44 15 061 | 93179876 | BUSH,TIMING COVER TO COVER | 1 |
|
| 7 | 44 15 234 | 93180290 | SEAL,RING,TIMING CASE,REAR | 1 |
|
| 8 | 44 15 235 | 93180291 | SEAL,RING,TIMING CASE,REAR | 1 |
|
| 9 | 44 15 236 | 93180292 | SEAL,RING,TIMING CASE,REAR | 1 |
|
| 10 | 44 15 237 | 93180294 | SEAL,RING,TIMING CASE,REAR | 1 |
|
| 11 | 44 15 062 | 93179877 | SCREW,REAR TIMING CASE TO CYLINDER BLOCK | AR |
|
| 12 | 44 15 141 | 93180000 | SCREW,REAR TIMING CASE TO CYLINDER BLOCK | AR |
|
| 13 | 44 15 142 | 93180001 | SCREW,REAR TIMING CASE TO CYLINDER BLOCK | AR |
|
| 14 | 44 15 238 | 93180297 | SCREW,FRONT TIMING CASE TO REAR TIMING CASE | AR |
|
| 15 | 44 15 151 | 93180044 | SCREW,FRONT TIMING CASE TO REAR TIMING CASE | AR |
|
| 16 | 44 15 239 | 93180298 | SCREW,TIMING CASE BACK PLATE TO CYLINDER BLOCK | AR |
|
| 17 | 44 15 242 | 93180304 | SCREW,TIMING CASE BACK PLATE TO CYLINDER BLOCK | AR |
|
| 18 | 44 15 241 | 93180303 | PLUG,SCREW | AR |
|
| 19 | 44 15 075 | 93179794 | WASHER,PLUG | |
|
| 20 | 44 15 023 | 93179691 | PIN,GUIDE,TIMING CASE TO CYLINDER BLOCK | 1 |
|
| 21 | 44 15 951 | 93184215 | STUD,TIMING CASE TO BLOCK | AR |
|
| 22 | 44 15 952 | 93184216 | STUD,TIMING CASE TO BLOCK | AR |
|
| 23 | 44 15 077 | 93179803 | SENSOR,CAMSHAFT,POSITION (NLS.- USE 95507625) | 1 |
|
| ⤷ | 44 21 645 | 95507625 | SENSOR,CAMSHAFT,POSITION (NLS.- USE 93167895) | 1 |
|
| 23 | 44 20 249 | 93167895 | SENSOR,CAMSHAFT,POSITION | 1 |
|
| 24 | 44 15 079 | 93179805 | SEAL,RING,SENSOR (NLS.- USE 93189138) | 1 |
|
| 25 | 44 15 080 | 93179808 | SCREW,HEX.HD.,SENSOR FIXING | AR |
|
| 26 | 44 15 082 | 93179848 | SENSOR,ENGINE SPEED (NLS.- USE 95509231) | 1 |
|
| 27 | 44 15 022 | 93179690 | SCREW,HEX.HD.,SENSOR FIXING | AR |
|
| 28 | 44 16 741 | 93189136 | PLUG,IGNITION TIMING | 1 |
|
