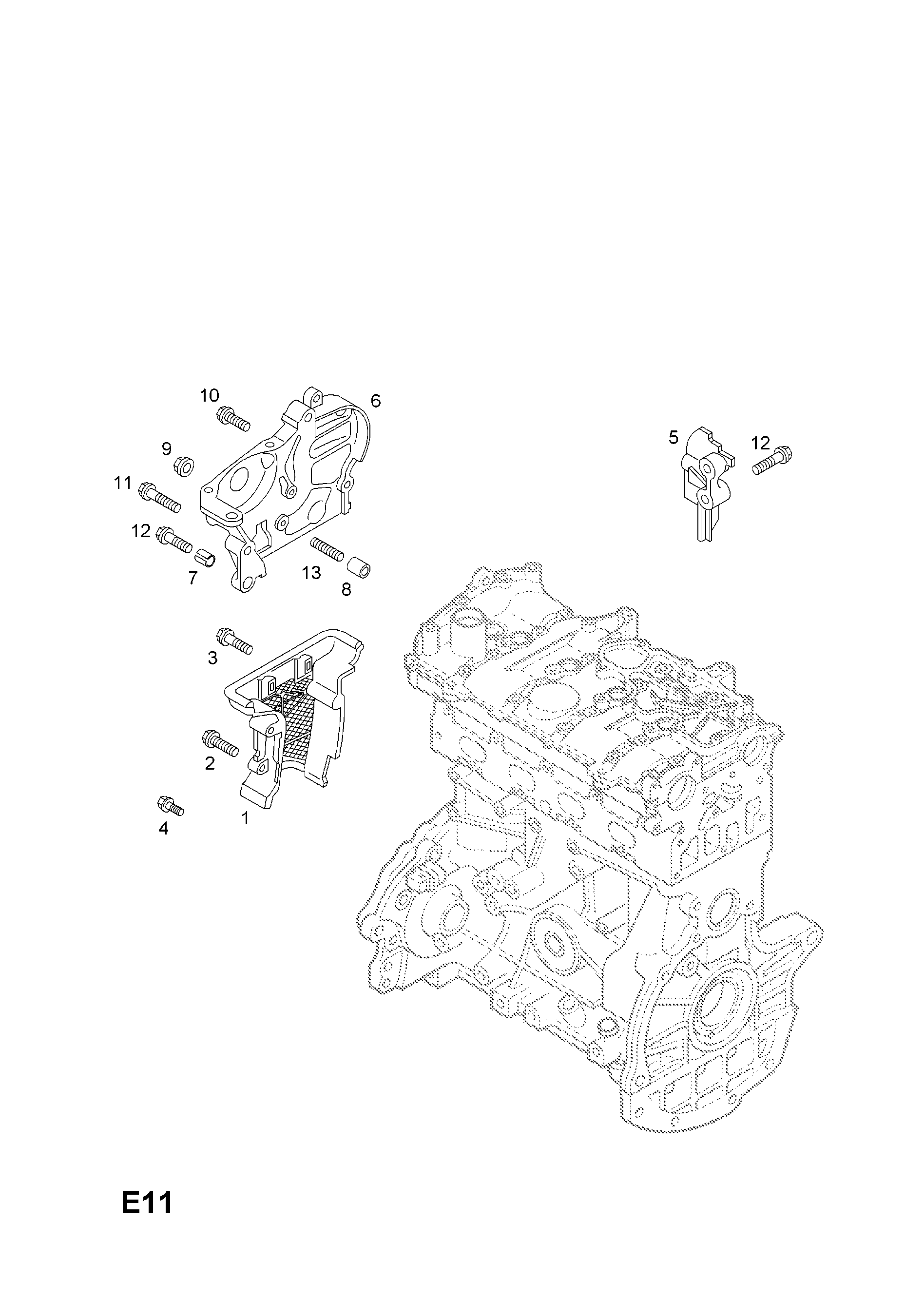

| PNC | Rész kódja | GM rész száma | Cím | Mennyiség | Információ |
i |
|---|
| 1 | 440****83 | 911****46 | COVER,FRONT,ENGINE TIMING (NLS.- USE 93161005) | 1 |
|
| ⤷ | 441****09 | 931****05 | COVER,FRONT,ENGINE TIMING (NLS.- USE 93198592) | 1 |
|
| 2 | 441****33 | 931****72 | SCREW,HEX.HD.,M6 X 25,TIMING BELT COVER | 1 |
|
| 2 | 443****95 | 931****83 | SCREW,HEX.HD.,TIMING BELT COVER,M6 X 30 (NLS.- USE 93198731) | 1 |
|
| ⤷ | 445****78 | 931****31 | SCREW,HEX.HD.,TIMING BELT COVER,M6 X 30 | 1 |
|
| 3 | 440****31 | 910****31 | SCREW,HEX.HD.,TIMING BELT COVER (NLS.- USE 93161158) | 2 |
|
| 4 | 443****71 | 931****57 | SCREW,HEX.HD.,TIMING BELT COVER,LOWER,M6 (NLS.- USE 93863936) | AR |
|
| 5 | 441****39 | 911****65 | COVER,ENGINE TIMING,REAR,UPPER | 1 |
|
| 6 | 440****84 | 911****47 | COVER,ENGINE TIMING,UPPER | 1 |
|
| 7 | 440****33 | 931****21 | BUSH,TIMING BELT COVER | 1 |
|
| 8 | 440****98 | 931****03 | SPACER,TIMING BELT COVER (NLS.- USE 93160654) | 1 |
|
| ⤷ | 441****61 | 931****54 | SPACER,TIMING BELT COVER (NLS.- USE 93198551) | 1 |
|
| 9 | 443****58 | 931****98 | NUT,FLANGE,TIMING BELT COVER | AR |
|
| 10 | 444****63 | 931****78 | SCREW,HEX.HD.,M10 X 30,TIMING BELT COVER TO CYLINDER BLOCK (NLS.- USE 93191960) | 1 |
|
| 11 | 450****04 | 916****04 | SCREW,TIMING BELT COVER TO CYLINDER BLOCK (NLS.- USE 93194180) | 2 |
|
| 11 | 443****14 | 931****10 | SCREW,HEX.HD.,WITH WASHER,M10 X 50,TIMING BELT COVER,FRONT | AR |
|
| 12 | 441****31 | 931****07 | SCREW,TIMING BELT COVER TO CYLINDER HEAD,FRONT,UPPER,M8 | 1 |
|
| 12 | 441****70 | 931****20 | SCREW,TIMING BELT COVER TO CYLINDER HEAD,FRONT,UPPER,M8 | 1 |
|
| 12 | 444****81 | 931****81 | SCREW,TIMING BELT COVER TO CYLINDER HEAD,FRONT,UPPER | AR |
|
| 13 | 440****24 | 931****74 | STUD,TIMING BELT COVER,M10 X 60 | AR |
|
